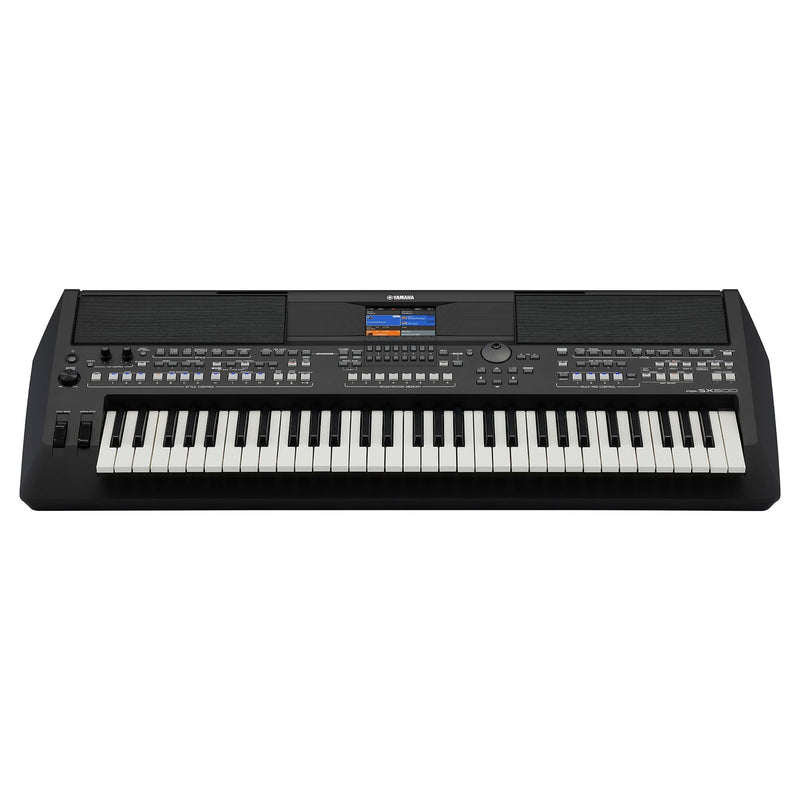

Yamaha PSR-SX600 Arranger Workstation

THE NEXT LEVEL, PSR-SX

Never before has an entry-level, professional arranger workstation been able to deliver high-end sound, content, and intuitiveness at such an affordable price. The PSR-SX600 is a great partner for musicians at any level.

A World of Sounds and Grooves

The PSR-SX600 helps you achieve pro-level, musical experiences by providing incredibly realistic instrument Voices that leave listeners in awe. Industry-leading accompaniment Styles let you lead an ensemble in a variety of musical genres from around the world, and Smart Chord functionality helps you achieve complex chord harmony intuitively by playing just a few keys. You can even connect a microphone (not included) and sing along with your performances while adding studio-quality digital effects.

Custom Performances Worth Sharing

Featuring assignable controllers such as Multi Pads and real-time control knobs, shape your sounds and performances to your satisfaction, then share your creations with the world using the free Rec'n'Share app.

POWERFUL PERFORMANCE FEATURES

Flexible Style control

The powerful Unison & Accent function gives you expressive flexibility of Style control. With the Unison function turned on, you can play a melody and have it reproduced simultaneously (i.e., the same melody is played by multiple instruments) or tutti (i.e., all parts are played at the same time) like passages in songs such as "Sir Duke" by Stevie Wonder, or "I Feel Good" by James Brown. With the Accent function turned on, accents are automatically generated by adding rhythmic "shots" to Style playback by striking the keys a little harder.

Professional level digital audio converter

The audio output of the PSR-SX600 has been completely overhauled with focus on delivering the highest quality sound from your keyboard. The new Digital Audio Converter (DAC) provides high quality defined sound across a wide frequency range, ensuring the PSR-SX600 always cuts through the mix.

Never miss a beat!

When playing Styles, easily jump to the beginning of the bar by pressing the [RESET/TAP TEMPO] button. A valuable feature for accompanying singers or performing music with varying time signatures.

Share your talents

Rec'n'Share allows you to record audio and video along with songs from your music library and then share your performances with the friends, family, and fans!

GET INSPIRED!

Authentic Instrument Voices

The PSR-SX600 has a comprehensive and sonically stunning set of authentic instrument Voices, and gives you the tools to play these Voices naturally and with intuitive expressiveness. Super Articulation Voices enable you to recreate the subtle nuances of non-keyboard instruments, such as body taps on a guitar or breath sounds with wind instruments, simply by playing naturally or using an assignable pedal.

Conduct your very own backing band!

Accompaniment and rhythmic backing patterns (called "Styles") covering a wide range of musical genres, including pop, jazz, and many more, let you single-handedly recreate the sound of a full band or orchestra.

Shape your sound with professional effects

DSP (Digital Signal Processor) features built into the PSR-SX600 provide pro-level effects, such as Real Distortion and Reverb. You can apply the DSP effects independently to specific parts, such as your keyboard Voices, song parts or Style parts, giving you full production flexibility.

The world is at your fingertips!

The PSR-SX600 features a palette of Voice and Style content from Brazil, China, and Africa. Let your music take you to new places!

CUSTOM, INTUITIVE CONTROL

Get more from accompaniment Styles

Create complex chord harmony with only a few fingers, so that players with any level of experience can achieve incredible sounding music using the on-board accompaniment Styles.

Customizable additions to your performances

The Multi Pads can be used to play a number of short, pre-recorded rhythmic and melodic sequences and loops, giving you the creative freedom you deserve.

Audio Link Multi Pad

Multi Pads not only work with MIDI data, but also allow you to create unique, new pad content with your own audio (WAV) data for playing back during your performance.

Versatile real-time controllers

The two LIVE CONTROL knobs can be assigned to various different functions, letting you intuitively control your performance in real-time. For example, you can use the knobs to control Resonance and Cutoff parameters, or other expressive effects on the fly!

Quick recall of your settings

Playlist is a convenient feature that helps you quickly setup your instrument to play your tunes. This makes it easy to manage and call up your songs and the related settings, no matter how large your repertoire.

Size/Weight

Width 1004 mm
Height 134 mm
Depth 410 mm
Weight 8.1 kg

Control Interface

Number of Keys 61
Type Organ, Initial Touch
Touch Response Normal, Soft 1, Soft 2, Hard 1, Hard 2
Joystick No
Control Knobs 2 (assignable)
Pitch Bend Yes
Modulation Yes
Display Type TFT Color Wide WQVGA LCD
Display Size 480 x 272 dots (4.3 inch)
Touch Screen  -
Language English, German, French, Spanish, Italian, Japanese

Voices

Tone Generating Technology AWM Stereo Sampling
Number of Polyphony (Max.) 128
Number of Voices 850 Voices + 43 Drum/SFX Kits
Featured Voices 73 S.Art!, 27 Mega Voice, 27 Sweet! Voices, 64 Cool! Voices, 71 Live! Voices
Compatibility XG Yes (for Song playback)
Compatibility GS Yes (for Song playback)
Compatibility GM Yes
Compatibility GM2 Yes
Expansion Voice Yes (approx. 100 MB)
Editing Voice Set
Part Right 1, Right 2, Right 3, Left

Effects

Reverb 52 Presets + 30 User
Chorus 106 Presets + 30 User
DSP 295 Presets + 30 User
Insertion Effect  -
Master Compressor 5 Presets + 30 User
Master EQ 5 Presets + 30 User
Part EQ 27 Parts
Others Mic/Guitar effects: Noise Gate x 1, Compressor x 1, 3Band EQ x 1
Arpeggio Yes

Accompaniment Styles

Number of Preset Styles 415
Featured Styles 372 Pro Styles, 32 Session Styles, 10 DJ Styles, 1 Free Play
Fingering Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard, Smart Chord
Style Control INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3
One Touch Setting (OTS) 4 for each Style
Style Section Reset Yes

Unison & Accent Yes
Expansion Style Yes (Internal Memory)
Compatibility Style File Format (SFF), Style File Format GE (SFF GE)

Songs

Number of Preset Songs 3 Sample Songs
Number of Songs Unlimited (depends on the drive capacity)
Number of Tracks 16
Data Capacity Approx. 1 MB/Song
Recording Function Quick Recording, Multi Track Recording
Playback SMF (Format 0 & 1), XF
Recording SMF (Format 0)

Multi Pads

Number of Multi Pad Banks 188 Banks x 4 Pads
Audio Link Yes

Functions

Number of Buttons 8
Control Registration Sequence, Freeze
Number of Records 500 (max.) Records per Playlist file
Lesson/Guide Follow Lights, Any Key, Karao-Key, Your Tempo, Search Registration Bank
Demo/Help Demonstration Yes
Metronome Yes
Tempo Range 5 - 500, Tap Tempo
Transpose -12 – 0 – +12
Tuning 414.8 – 440 – 466.8 Hz
Octave Button Yes
Scale Type 9 types
Direct Access Yes
Text Display Function Yes
Wallpaper Customization -
Display Out  -
Harmony/Echo Yes (with Arpeggion)
Panel Sustain Yes
Mono/Poly Yes
Voice Information Yes
Style Creator Yes
Style Recommender -
OTS Information Yes
Song Creator Yes
Score Display Function Yes
Lyrics Display Function Yes
Multi Pad Creator  Yes
Recording Time (max.) 80 minutes/Song
Recording *only on USB .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo)
Playback *only on USB .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo)
Lyrics Display Function  -
Time Stretch Yes
Pitch Shift Yes
Vocal Cancel Yes

Storage and Connectivity

Internal Memory Yes (approx. 20 MB)
External Drives USB Flash Drive
Headphones Yes
FOOT PEDAL 1 (SUSTAIN), 2 (Unison), Function Assignable
Microphone Microphone x 1
MIDI -
AUX IN Stereo mini jack
LINE OUT MAIN OUTPUT Main Output (L/L+R, R)
USB TO DEVICE Yes
USB TO HOST Yes

Amplifiers and Speakers

Amplifiers 15 W x 2
Speakers 12 cm x 2

Power Supply

Power Supply PA-300C or an equivalent recommended by Yamaha
Power Consumption  W17
Auto Power Off Function Yes

Accessories

Included Accessories Owner's Manual, Online Member Product Registration, Music Rest, AC Adaptor (may not be include depending on your area. Check with your Yamaha dealer.)
