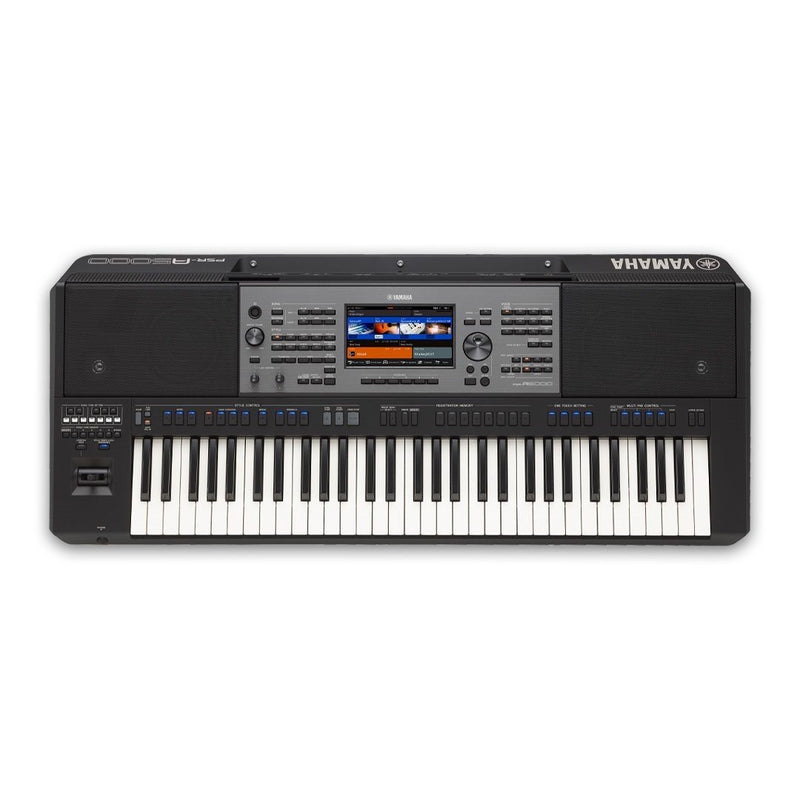

Yamaha PSR-A5000 Arranger Workstation


  • 1,161 Voices, including 299 World Music Voices, 44 Oriental Drum Kits, 20 Revo! SFX kits
  • 454 Styles (including 260 World Music Styles, Khaleeji, Shami, Masri, Maghrebi, Persian and Turkish)
  • Crossfade Portamento with velocity and time related parameters
  • 128 key drum kits with key off note, Upper Octave (-3 - +3)
  • Style Section Time Signature, Style Section Reset
  • Live Control knobs, Live Control joystick, Assignable buttons, 7-inch color touch screen, FSB keyboard, Sub output
  • Scale Tune Setting buttons, Scale Tune Memory buttons
  • Mic/Guitar input for use when singing or collaborating with other performers
  • Chord Looper function
  • Playlist and Registration for quick and easy set-up, Preset Registration
  • Voice and Style expandability with the Yamaha Expansion Manager
  • Audio Recording (WAV/MP3)
  • 1 GB (approx.) on-board memory for expansion data, 2 GB (approx.) internal memory
  • 2 USB TO DEVICE terminals


Designed especially for World musicians, the PSR-A5000 becomes an ultimate partner for your greatest live performances and original content production. Explore the new features and get inspired with the new sound.


Make your performances of traditional and modern world music more powerful with newly sampled instruments and 210 fresh Styles. Oud, Qanoon, Nay, and many other Voices sound incredibly realistic thanks to new velocity-sensitive portamento, Super Articulation! Voices, and dedicated world music instrument waveforms that are 10 times larger than in previous model.


Program your original Voices and Styles with the PSR-A5000. Expansion memory has been increased to 1 GB (approx.). It allows you to create and store various and higher quality contents. The PSR-A5000 supports Styles with individual time signatures for each variation, which increases your possibilities in Style programming.


Iconic World Music Instruments
Iconic World Music Instruments

Most of important world music instruments have been newly sampled with more attention to detail than ever before. They feature multiple dynamic layers, various new playing Styles and were mixed down in stereo. We provide Revo! SFX kits with Wave Cycling technology. Super Articulation! technology is applied to control the different articulations. Voice content is conveniently categorized for easy access.

New Styles
New Styles

210 new oriental Styles with richer sound dynamics and more power than ever before. Choose Styles from a variety of genres, such as Khaleeji (36 Styles), Shami (35 Styles), Masri (15 Styles), Maghrebi (50 Styles), Persian (43 Styles), and Turkish (31 Styles). Style Section Time Signatures let you use a range of time signatures within a single Style, which means that you can combine different musical parts. With the Style Section Reset function, you can rewind the rhythm of the Style to beat 1 immediately. This is also helpful when you need to quickly synchronize your performance on stage. Style content is categorized to be convenient for players of oriental music.

Istanbul Strings
Istanbul Strings

Istanbul Strings are one of the most popular strings section in Turkey. Their sound has been recorded innumerable times and can be found on many current music productions, not only in Turkey but also on international records. The PSR-A5000 offers Istanbul Strings samples for the first time in arranger workstation.

Chord Looper
Chord Looper

Chord Looper lets you record a chord sequence and play it back, freeing your left hand from playing chords and providing new ways to enhance your performance. Since the chords play back in a loop, you don’t need to repeat the chord pattern manually anymore, which lets you focus on your performance and other operations.

Drums and Percussions
 Drums and Percussions

Expanded drum kit functionality allows you to play 128 mapped instruments from a single kit. Great care has been taken with drum mapping to provide an optimized, intuitive layout for oriental finger drumming on a keyboard. Thanks to newly added key-off notes, drums and percussion Voices sound very natural and make performance and programming easier. Revo! SFX kits provide more natural drum rolls and enhanced expressiveness.

User Interface
User Interface User Interface User Interface User Interface

Scale Tune buttons offer easy access during live performances. Individual note pitches can be easily modified and stored as your own new scales to Scale Tune Memories. Assign your favorite function/parameter to Live Control knobs, Joystick, Assignable buttons, Foot Pedals and Home shortcuts. FSB Keyboard offers remarkable playability thanks to its heavier initial key resistance and greater key travel and refined keyboard structure. The 7-inch touch display and new graphic user interface provide for instinctive control over the instrument's powerful features.

New Portamento
New Portamento New Portamento

Newly added Crossfade Portamento with velocity and time related parameters. Transition speed and velocity of following notes are editable, allowing smooth, expressive transitions between successive notes. Check out "Audio & Video" tab to easily recognize the natural behavior of the instruments achieved with new portamento.

Sub Output
Sub Output

The PSR-A5000 features two sub line-out connections that you can use to adapt your sound to various situations. Try routing bass through a separate subwoofer for a fuller, more powerful bottom end, or send parts and drum instruments to an external console to shape your sound further.


Width 1,017 mm

Height 139 mm

Depth 431 mm

Weight 11.5 kg

Control Interface

Number of Keys 61

Type Organ (FSB), Initial Touch

Touch Response Normal, Soft 1, Soft 2, Hard 1, Hard 2

Joystick Yes (assignable)

Control Knobs 2 (assignable)

Assignable Buttons 7

Scale Tune Memory Buttons 5

Scale Tune Setting Buttons Yes

Display Type TFT Color Wide VGA LCD

Size 800 x 480 dots (7 inch)

Touch Screen Yes

Colour Colour

Language English, German, French, Spanish, Italian

Panel Language English


Tone Generating Technology AWM Stereo Sampling

Polyphony 128

Preset Number of Voices 1,161 Voices + 86 Drum/SFX Kits + 480 XG Voices

Featured Voices 219 S.Art!, 25 MegaVoice, 41 Sweet!, 64 Cool!, 91 Live!, 24 OrganFlutes, 20 Revo!SFX (including 299 Oriental Voices, 44 Oriental Drum Kits)

Compatibility & Expandability

XG Yes (for Song playback)

GS Yes (for Song playback)

GM Yes

GM2 Yes

Expansion Voice Yes (approx. 1 GB)

Editing Voice Set

Part Right 1, Right 2, Right 3, Left


Reverb 59 Preset + 30 User

Chorus 106 Preset + 30 User

DSP 322 Preset (with VCM) + 30 User

Insertion Effect 1-8: 322 Preset (with VCM) + 30 User

Master Compressor 5 Preset + 30 User

Master EQ 5 Preset + 30 User

Part EQ 28 Parts

Others Mic/Guitar effects: Noise Gate, Compressor, 3 Band E

Accompaniment Styles

Number of Preset Styles 454 (including 260 Oriental Styles)

Featured Styles 429 Pro Styles, 15 Session Styles, 10 DJ Styles

Fingering Single Finger, Multi Finger, Fingered, Fingered On Bass, Full Keyboard, AI Fingered, AI Full Keyboard

Style Control INTRO x 3, MAIN VARIATION x 4, FILL IN x 4, BREAK, ENDING x 3

One Touch Setting (OTS) 4 for each Style

Chord Looper Yes

Style Section Reset Yes

Style Section Change Timing Yes

Style Section Time Signature Yes

Expansion Audio Style Yes (Internal Memory)

Compatibility Style File Format, Style File Format GE


Number of Preset Songs 3 Sample Songs

Number of Songs Unlimited (depends on the drive capacity)

Number of Tracks 16

Data Capacity Approx. 3 MB per Song

Recording Function Quick Recording, Multi Track Recording, Step Recording

Playback SMF (Format 0 & 1), XF

Recording SMF (Format 0)

Multi Pads

Number of Multi Pad Banks 257 Banks x 4 Pads

Audio Link Yes


Number of Buttons 8

Control Registration Sequence, Freeze

Playlist Number of Records 2,500 (max.) Records per Playlist file

Guide Follow Lights, Any Key, Karao-Key, Your Tempo

Search Yes

Demo Yes

Metronome Yes

Tempo Range 5 - 500, Tap Tempo

Transpose -12 – 0 – +12

Tuning 414.8 – 440 – 466.8 H

Octave Button -3 – 0 – +3

Scale Type 12 types

Sub Scale Setting Yes

Scale Tune Memory 5

Direct Access Yes

Text Display Function Yes

Wallpaper Customization Yes

Harmony/Echo Yes

Arpeggio Yes

Panel Sustain Yes

Mono/Poly Yes

Style Creator Yes

OTS Information Yes

Score Display Function Yes

Lyrics Display Function Yes

Song Creator Yes

Multi Pad Creator Yes

Recording Time (max.) Approx. 0.8 GB (80 minutes) per Song

Recording WAV (44.1 kHz, 16 bit, stereo), MP3 (44.1 kHz, 128/256/320 kbps, stereo)

Playback WAV (44.1 kHz, 16 bit, stereo), MP3 (44.1/48.0 kHz, 64–320 kbps and VBR, mono/stereo)

Lyrics Display Function Yes (.mp3 only)

Time Stretch Yes

Pitch Shift Yes

Vocal Cancel Yes

Storage and Connectivity

Internal Memory Yes (approx. 2 GB)

External Drives USB flash drive

Headphones Standard stereo phone jack

FOOT PEDAL 2 (Assignable)

Microphone Microphone/Guitar


AUX IN Stereo mini jack




Amplifiers and Speakers

Amplifiers 15 W x 2

Speakers 13 cm x 2 + 5 cm x 2

Power Supply PA-300C or an equivalent recommended by Yamaha

Power Consumption 24 W

Auto Power Off Function Yes


Included Accessories Owner's Manual, Online Member Product Registration, Music Rest, AC Adaptor (May not be included depending on your area. Check with your Yamaha dealer.)
