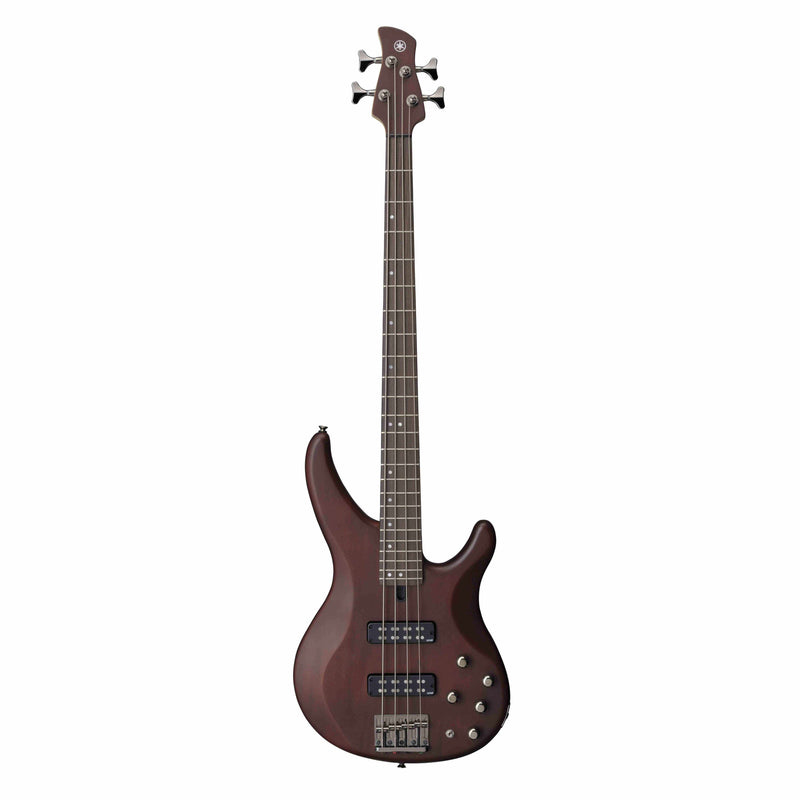

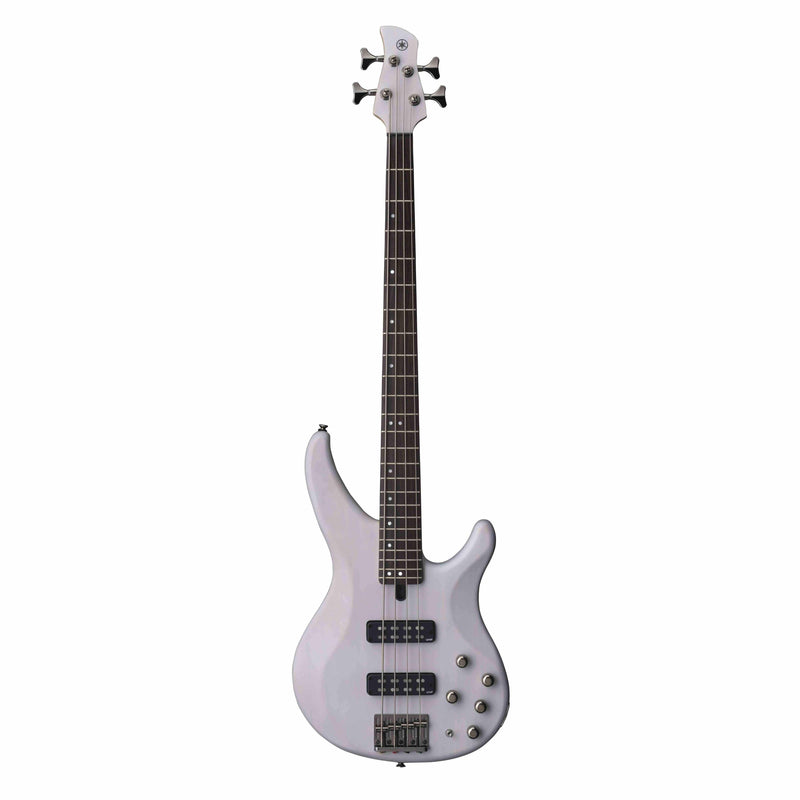

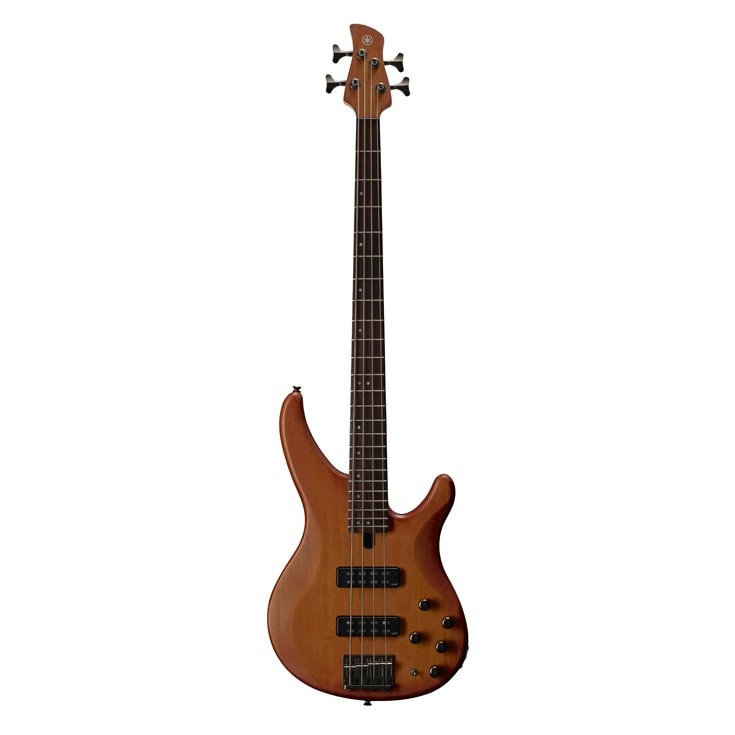

Yamaha TRBX504 Bass
SKU: TRBX504TWH
$1,016
- Solid mahogany body construction
- Maple / Mahogany 5-Piece Neck
- Slim 38mm nut width
- 3-Band Active EQ with active/passive preamp
- Battery Alert LED
Premium mahogany construction and an ultra-musical active/passive pre amp.
TRBX500 has a simple brief – tone. Premium mahogany construction and an ultra-musical active/passive pre-amp design deliver the flexibility and sheer tonal quality to allow you to sculpt the perfect sound for your music.
TRBX Electronics
TRBX500 features controls for master volume, balance and 3-band EQ with active/passive switch for maximum flexibility.
Pickups
YGD designed H5 pickups are defined by a clean, open tone that’s perfectly matched with the flexibility of the active/passive preamp design. Their quad-polepiece design and alnico magnets give them the power to drive the active circuit and the sensitivity and subtlety to capture every nuance in passive mode.
Electronics (Active/Passive selector, Battery Alert)
TRBX500 models feature an audiophile-grade active/passive circuit for fine tonal control and extreme flexibility. The advanced design offers a level-matched output whether in passive or active mode and tone-switching circuitry that seamlessly moves from treble control to master passive tone. High-quality gold plated parts are used for key signal chain contacts, providing increased conductivity and reliability and a battery alert LED installed on the back panel gives instant indication of low power to eliminate sudden power loss during performance.
Body
TRBX features a sculpted solid mahogany body, with a mass-optimized 3D design for the optimum balance between tone and comfort coupled with perfect weight distribution.
Neck
TRBX’s neck design combines a fast, ultra-comfortable profile with 5-pc maple/mahogany laminated construction for outstanding stability and excellent tone.
Neck Joint
TRBX uses a precision fitted bolt-on neck joint for maximum adjustability and clear, punchy tone. Developed through hundreds of hours of play-testing, the refined neck joint shape perfectly balances strength, vibration transfer and upper-fret access.
Headstock
Straight string pull from nut to machine head eliminates lateral tension, providing superior tuning stability and reducing overtones.
Headstock
38mm (4-string) or 43mm (5-string) nut widths give fast, comfortable playability for any style.
Bridge
A high-mass die-cast bridge efficiently transfers string vibrations to the body for full, rich tone combined with excellent adjustability and road-tested durability. 18mm string spacing on the 5-string model offers outstanding playability for technical slap or finger styles.
Output Jack
Yamaha’s metal plate-mounted standard jack socket offers superior durability and easy maintenance.
|
|
TRBX504 |
|||||||||
General Specifications |
||||||||||
|
General |
Neck Construction |
Bolt-on |
||||||||
|
Scale Length |
34" (863.6 mm) |
|||||||||
|
Body |
Body |
Mahogany |
||||||||
|
Body Finish |
Gloss Polyurethane |
|||||||||
|
Neck |
Neck Material |
Maple/Mahogany 5-Piece |
||||||||
|
Neck Finish |
Satin Polyurethane |
|||||||||
|
Fingerboard Materials |
Rosewood |
|||||||||
|
Fingerboard Radius |
10" (250 mm) |
|||||||||
|
Fret wire |
Medium |
|||||||||
|
Number of frets |
24 |
|||||||||
|
Nut materials |
Urea |
|||||||||
|
Width @ 0 Fret / 12th Fret |
38.0 / 56.4 mm |
|||||||||
|
Thickness @ 1st Fret / 12th Fret |
19.5 / 21.5 mm |
|||||||||
|
Electronics |
Neck Pickup |
Double Coil / Alnico V |
||||||||
|
Middle Pickup |
- |
|||||||||
|
Bridge Pickup |
Double Coil / Alnico V |
|||||||||
|
Controls |
Master Volume, Pickup Balancer, 3-Band EQ(Bass, Middle, Treble), Active/Pssive Switch. |
|||||||||
|
Pickup Switch |
- |
|||||||||
|
Hardware |
Bridge |
Die-cast |
||||||||
|
String spacing |
19mm |
|||||||||
|
Tailpiece |
- |
|||||||||
|
Tuning Machines |
Covered / Die-cast |
|||||||||
|
Pickguard |
- |
|||||||||
|
Others |
Strings |
D'Addario EXL170SL / 0.045-0.100 |
||||||||
|
Case |
- |
|||||||||
|
Special Features |
- |
|||||||||
