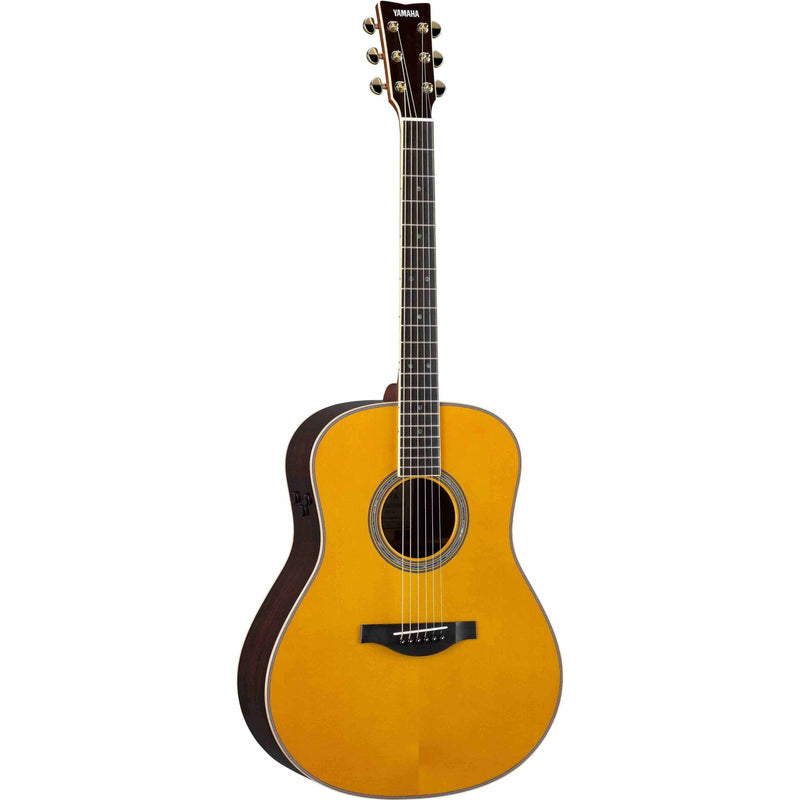

Yamaha LL-TA TransAcoustic Guitar

SKU: LLTAVT

$1,429 RRP $1,949
Finish: Vintage Tint
  • All Solid TransAcoustic Guitar
  • Traditional western body design
  • Solid Engelmann spruce top with A.R.E. treatment
  • Solid rosewood back & sides
  • Amazing sounding reverb/chorus built-into the guitar with no need for external amplification or effects
  • Designed to provide superb acoustic guitar sound

The Yamaha TransAcoustic Guitar recreates that incredible experience without needing any external amplification or effects, just the guitar itself. It’s the most inspiring, engaging acoustic guitar you’ve ever played

Playing guitar in a great sounding room is the most inspiring, engaging playing experience imaginable – far more enjoyable than in a dry-sounding room like a lounge, office or den. Yamaha’s TransAcoustic Guitar recreates the incredible experience of playing in a rich, live room without needing any external amplification or effects – just the guitar itself. Whether you’re practicing, writing, recording or just playing for fun, the TransAcoustic Guitar will make you play better, longer and with more creativity. Once you’ve experienced it, you’ll never want to play another acoustic guitar again.

FEATURES

ACTUATOR

An actuator installed on the inner surface of the guitar back vibrates in response to the vibrations of the strings. The vibrations of the actuator are then conveyed to the body of the guitar, and to the air in and around the guitar body, generating authentic reverb and chorus sounds from inside the body.

SIMPLE CONTROLS

Three simple knobs let you adjust the degree of effect applied and the lineout volume level. Additionally, keeping the controls small minimizes the area of the holes in the body material, reducing acoustic sound loss.

(A) Chorus Control

(B) Reverb Control (Room / Hall)

(C) TA Switch / Line Out Volume Control

* Pressing the TA Switch for more than 0.3 seconds activates the TA function.

* When a cable is connected to the line-out jack, the lineout volume can be adjusted by rotating the (C) knob.

* The reverb type switches from Room to Hall around the 12:00 position.

DESIGNED TO PROVIDE SUPERB ACOUSTIC GUITAR SOUND

The body is a solid top guitar based on the FG-series.

Louder and stronger sound in the low- to mid-ranges, thanks to cutting-edge acoustic analysis technology developed by the Yamaha R&D Division.

This analysis led to the development of the new scalloped bracing pattern, a new and ideal acoustic structure that maintains the durability of the top board while bringing out the most sound the Yamaha FG-TA has to offer.

NEWLY DESIGNED BATTERY BOX

Battery box integrated into the end-pin jack. This requires fewer holes in the body, thus reducing acoustic sound loss. Connect the cable from the jack to a PA or amp to use as an acoustic electric guitar

General Specifications

Body Shape

Yamaha Original Jumbo

Scale Length

650mm (25 9/16”)

Body Length

513mm (20 3/16")

Total Length

1046mm (41 3/16")

Body Width

415mm (16 5/16")

Body Depth

100-125mm (3 15/16" - 4 15/16")

Nut Width

44mm (1 3/4")

String Spacing *

11.0mm

Top Material

Solid Engelmann Spruce A.R.E.

Back Material

Solid Rosewood

Side Material

Solid Rosewood

Neck Material

Mahogany + Rosewood 5ply

Fingerboard Material

Ebony

Fingerboard Radius

R400mm (15 3/4")

Bridge Material

Ebony

Nut Material

Urea

Saddle Material

Urea

Bridge Pins

Black ABS with White Dot

Tuners

Die-cast Gold(TM29G)

Body Binding

Maple + Black

Soundhole Inlay

Abalone + Black + White

Pickguard

Transparent

Body Finish

Gloss

Neck Finish

Matt

Electronics

SYSTEM70 TransAcoustic

Controls

Reverb(Room/Hall) / Chorus / TA Switch / Line Out Vol

Connections

LINE OUT

Strings

Elixir NANOWEB 80/20 Bronze Light

Accessories

Hex Wrench, 2 x AA Batteries

Case

Hard Bag

* Measured from the center of one bridge pin to the center of the next bridge pin.
