Yamaha CSF-TA TransAcoustic parlor guitars transport you to new creative spaces with immersive reverb and lush chorus effects, without needing an amp or other external gear.
Acoustic Guitar (R)Evolution
Playing guitar in a great sounding room is the most inspiring, engaging playing experience imaginable – far more enjoyable than in a dry-sounding room like a lounge, office or den. Yamaha’s TransAcoustic Guitar recreates the incredible experience of playing in a rich, live room without needing any external amplification or effects – just the guitar itself. Whether you’re practicing, writing, recording or just playing for fun, the TransAcoustic Guitar will make you play better, longer and with more creativity. Once you’ve experienced it, you’ll never want to play another acoustic guitar again.
An actuator installed on the inner surface of the guitar back vibrates in response to the vibrations of the strings. The vibrations of the actuator are then conveyed to the body of the guitar, and to the air in and around the guitar body, generating authentic reverb and chorus sounds from inside the body.

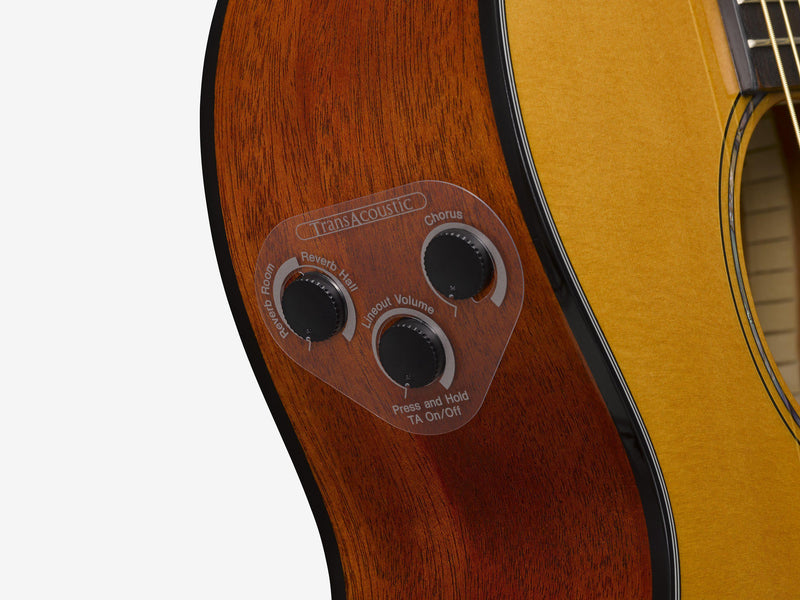

Three simple knobs let you adjust the degree of effect applied and the lineout volume level. Additionally, keeping the controls small minimizes the area of the holes in the body material, reducing acoustic sound loss.
(A) Chorus Control
(B) Reverb Control (Room / Hall)
(C) TA Switch / Line Out Volume Control
* Pressing the TA Switch for more than 0.3 seconds activates the TA function.
* When a cable is connected to the line-out jack, the lineout volume can be adjusted by rotating the (C) knob.
* The reverb type switches from Room to Hall around the 12:00 position.
The design of the CSF series utilizes newly-designed scalloped bracing that delivers rich, full-bodied resonance. The use of a forward shifted construction maintains the strength of the body while maximizing the vibration of the guitar’s top.
Battery box integrated into the end-pin jack. This requires fewer holes in the body, thus reducing acoustic sound loss. Connect the cable from the jack to a PA or amp to use as an acoustic electric guitar.
Body Shape CSF
Scale Length 600mm (23.6”)
Body Length 450mm (17.71")
Total Length 940mm (37.00")
Body Width 340mm (13.38")
Body Depth 85-105mm (3.34" - 4")
Nut Width 43mm (0.43")
String Spacing 10.0mm
Top Material Solid Sitka Spruce
Back Material Mahogany
Side Material Mahogany
Neck Material Nato
Fingerboard Material Rosewood
Fingerboard Radius R400mm (16")
Bridge Material Rosewood
Nut Material Urea
Saddle Material Urea
Bridge Pins Black ABS With White Dot
Tuners Die Cast Chrome
Body Binding Black & White
Soundhole Inlay Abalone & Black
Body Finish Gloss
Neck Finish Matt
Electronics SYSTEM70 TransAcoustic
Controls Reverb / Chorus / Line Out Vol(TA On/Off)
Connections Line Out
Strings Elixir NANOWEB 80/20 Bronze Light
Accessories Hex Wrench, 2 x AA Batteries
Case Hard Bag
