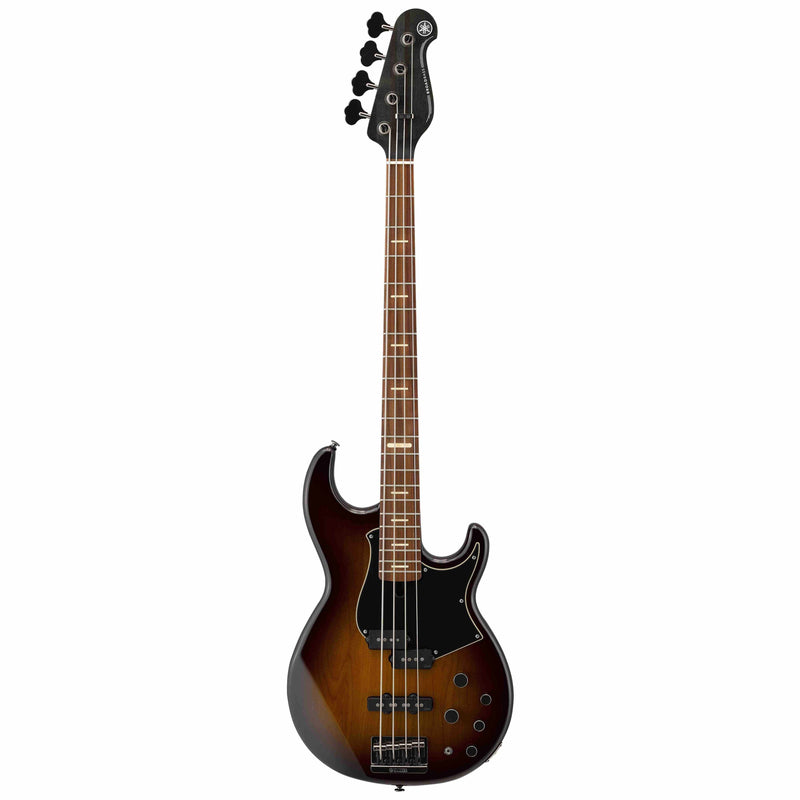

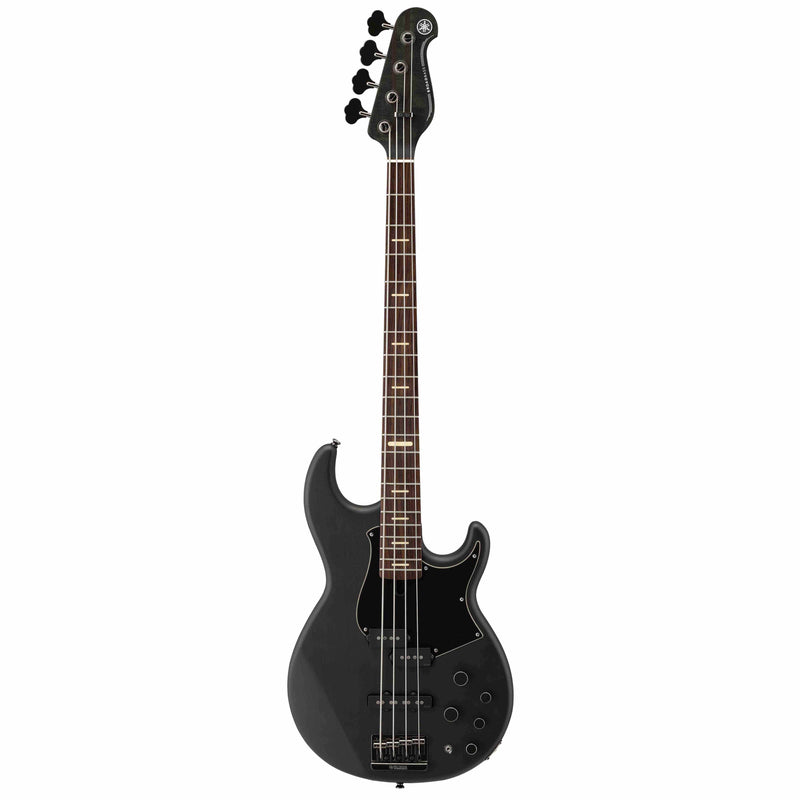

Yamaha BB734A Bass
SKU: BB734ATMBL
$1,124
- Intermediate Yamaha bass
- Alder / Maple/ Alder Body Construction
- 6-Bolt Miter Neck Joint
- 5-piece Neck
- YGD Custom V7 Pickups (AlnicoV)
- 3-Band Active EQ
- Battery Alert LED
- Vintage Plus Bridge : Convertible Bridge and Saddle
- Lightweight Open Gear Tuners
The BB for the working pro, the BB700 series features a versatile active/passive pickup configuration with a three-band EQ, six-bolt miter neck joint, Alder/Maple/Alder construction, and a diagonally strung convertible bridge.
The Workhorse
Music isn't just something you “do” anymore— it's your life. Every time you get on stage or hit the record button you've got to feel content in the knowledge that you’re playing an instrument with the versatility, durability, and superb sound that will guarantee your performances are consistently on point. Combining the crisp, penetrating tone, and serious flexibility of active pickups with the punch and sustain of a 6-bolt miter neck joint, the 700 models can be relied on to deliver an extraordinarily versatile sound that you can adapt to any genre or environment.
Alder/Maple/Alder Body Construction
The new BB features an Alder/Maple/Alder multi-laminated body construction. The hard maple center increases body stiffness and accentuates midrange to cut through the mix of a band, and allows a more uniform transmission of vibrations between the body and the maple neck for unparalleled resonance and sustain.
6-bolt Miter Neck Joint
Miter bolting holds the neck closer and tighter to the body fusing these two separate components into one.
Compared to a conventional bolt-on joint, miter bolting offers more efficient transfer of string vibration throughout the body, for improved sustain and outstanding resonance that brings every note to life.
YGD Custom V7 Pickups
Alnico magnets produce a fat yet penetrating tone that works in combination with the unique Alder/Maple/Alder construction of the 700 and Pro models for an organic, well-defined sound.
Active Circuit
The new BB700 models feature a specially tuned active/passive circuit for fine tonal control and extreme flexibility.
This updated circuit has been retuned for the BB for a crisper tone and improved mids via a level-matched output whether in passive or active mode and tone-switching circuitry that seamlessly moves from treble control to master passive tone.
High-quality gold plated parts are used for key signal chain contacts, providing increased conductivity and reliability and a battery alert LED installed on the back panel gives instant indication of low power to eliminate sudden power loss during performance.
Control
The 700 models feature active pickups with a 3 band EQ, a pickup balancer, and an active/passive switch, for enhanced versatility and flexibility when shaping your sound.
Convertible Bridge and Saddle for Precise Tone Shaping: Vintage Plus Bridge
The 700 and Pro are equipped with the Vintage Plus Bridge, which incorporates “Diagonal Body Thru Stringing,” where strings are angled at the saddle and pass through the instrument to the bridge at a 45º angle, as opposed to the traditional vertical stringing method which places more stress on the strings.
Diagonal Body Thru Stringing significantly reduces this stress while transferring string vibration to the body reliably and efficiently.
Strings can also be set to the tail end of the bridge, which comes equipped with a convertible saddle that can be adjusted to 2 different angles for more precise tonal shaping and feel. The rounder side of the saddle gives a slightly softer sound, while the more angled area produces a slightly tighter one.
The brass saddle of the Vintage Plus Bridge delivers a slightly deeper low-end, and the steel bridge plate offers a brighter tone. All screws and springs are made of stainless steel to guard against corrosion.
Five-piece Neck
The new series features a 5-ply maple and mahogany laminated neck, in a bolt-on design that delivers a sharp attack, and quick response. This durable construction resists warping and twisting and adds the tight, penetrating character of maple combined with the warmth of mahogany to the instrument’s tone.
New Neck Shape
The New BB models feature a slightly thinner neck than previous BB basses, improving playability and feel for both modern and traditional players.
Lightweight Tuners
Lighter weight tuners offer a better balance and complement the overall feel, providing a perfect match for the smaller, lighter body of the new BB.
BEYOND CLASSIC
The latest in Yamaha's storied BB series of bass guitars delivers the superb sound and build quality that this series is known for in a smaller body with even better playability. Featuring a Alder/Maple/Alder construction for quicker transmission of sound from the strings to the body and neck, a firmer 6-bolt miter neck joint for improved stability, and custom-wound pickups that achieve higher output gain while retaining the classic BB voicing, the new lineup of BB basses are a testament to our commitment to musical excellence.
THE LEGACY CONTINUES
In the BB Series, Yamaha has always sought to offer bassists nothing less than a pure bass guitar. Forgoing passing technical fads in favor in proven technologies and production techniques, every model in the BB Series has been a product of our commitment to creating a bass that allows you to build your own sound rather than defining one for you. These latest models continue this tradition of reliable excellence in superbly crafted bass guitars that you can depend on to give you the sound you need, in any situation you throw at it.
BUILT FOR THE WORKING BASSIST
What are bassists really looking for in their chosen instrument? The perfect sound? Versatility? Durability? All of the above and so much more. We've spent decades working closely with artists who practice their craft at the highest levels of recording and live performance to help us forge a clear vision of what working professionals demand of their bass in every capacity. By incorporating this invaluable, real-world experience and insight into practical approaches to the BB series' design, construction, and ultimately its legendary tone, this collaboration has been the impetus behind this iconic instrument's continuing evolution as the hardest working bass in the business.
PENETRATING SOUND
Think of any great bassist and you'll likely hear one of their more memorable bass lines, techniques, or solos playing in your head. You'll also most certainly recall the signature sound that helped define their unique identity as a musician and made them stand out as a real presence in the band they have performed or recorded with. Throughout the BB's 40 year history, Yamaha has worked closely with some of the most prolific bassists in the business to craft that unmistakable BB sound— constantly evaluating their ideas and feedback to create the right sound for the music of the moment. The latest series features a miter neck joint that has won praise in the Billy Sheehan Signature/ Attitude Limited III lineup, by increasing the efficiency of vibration transmission to the body for a more resonant, organic feel and tone. It also features an Alder/Maple/Alder construction that sandwiches maple into the center of the body for a crisper, richer sound, and impressive resonance.
A NEW TAKE ON A CLASSIC DESIGN
We all know the old adage about not fixing things that aren't broken, but that doesn't mean you can't make subtle, practical, or stylistic modifications to benefit performance and aesthetic—even to a proven design like the BB series. The new lineup has undergone a significant redesign with subtle contour changes and body weight reduction made out of consideration to playability and comfort, while still retaining the classic silhouette of the BB body/ head design. The differences are subtle, but you'll definitely feel them. The new models also feature standard sized pickups for the first time in a BB, for more convenient customization or replacement.
ALDER/MAPLE/ALDER BODY CONSTRUCTION
The new BB features an Alder/Maple/Alder multi-laminated body construction. The hard maple center increases body stiffness and accentuates midrange to cut through the mix of a band, and allows a more uniform transmission of vibrations between the body and the maple neck for unparalleled resonance and sustain. (BB Pro, BB700 Series)
6-BOLT MITER NECK JOINT
Miter bolting holds the neck closer and tighter to the body fusing these two separate components into one. Compared to a conventional bolt-on joint, miter bolting offers more efficient transfer of string vibration throughout the body, for improved sustain and outstanding resonance that brings every note to life. (BB Pro, BB700, BB400 Series)
CUSTOM-WOUND PICKUPS
BB's custom-wound pickups are designed to fit standard pickup cavities and feature a medium-high output with vintage voicing for great tone in any setting. BB basses come with pickups selected specifically to match the distinct character of each model in the series, delivering a uniquely versatile sound while retaining the classic BB tone.
CONVERTIBLE BRIDGE AND SADDLE FOR PRECISE TONE SHAPING
BB basses incorporate “Diagonal Body Thru Stringing” where strings are angled at the saddle and pass through the instrument to the bridge at a 45º angle, as opposed to the traditional vertical stringing method which places more stress on the strings. Diagonal Body Thru Stringing significantly reduces this stress while transferring string vibration to the body reliably and efficiently. Strings can also be set to the tail end of the bridge, which comes equipped with a convertible saddle that can be adjusted to 2 different angles for more precise tonal shaping and feel. The rounder side of the saddle gives a slightly duller sound, while the more angled area of the saddle produces a slightly tighter one. The 700 and Pro are equipped with the Vintage Plus Bridge, designed with a diagonal cut at the string’s contact point on the saddle to form a more stable fulcrum and produce a clear, well-shaped sound. Brass saddles deliver a slightly deeper low-end, while the steel bridge plate offers more response. All screws and springs are made of stainless steel to guard against corrosion. The 400 is equipped with a “Vintage Light” bridge with an offset low E string.
|
BB734A |
BB735A | ||||||||
General Specifications | ||||||||||
General | Construction | Bolt-on (6-bolt miter neck joint ) | Bolt-on (6-bolt miter neck joint ) | |||||||
Scale Length | 34" (863.6 mm) | 34" (863.6 mm) | ||||||||
Body | Body Materials | Alder / Maple / Alder construction | Alder / Maple / Alder construction | |||||||
Body Finish | Matte Translucent Black : Satin Polyurethane Dark Coffee Sunburst : Gloss Polyurethane | Matte Translucent Black : Satin Polyurethane Dark Coffee Sunburst : Gloss Polyurethane | ||||||||
Neck | Neck Materials | Maple/ Mahogany 5pcs | Maple/ Mahogany 5pcs | |||||||
Neck Finish | Satin Polyurethane | Satin Polyurethane | ||||||||
Fingerboard Materials | Rosewood | Rosewood | ||||||||
Fingerboard Radius | 10" (250 mm) | 23 5/8" (600 mm) | ||||||||
Fret wire | Medium | Medium | ||||||||
Number of frets | 21 | 21 | ||||||||
Nut materials | Graphtech | Graphtech | ||||||||
Width @ 0 Fret / 12th Fret | 40.0 / 56.3 mm | 43.0 / 63.9 mm | ||||||||
Thickness @ 1st Fret / 12th Fret | 21.0 / 23.0 mm | 20.5 / 22.5 mm | ||||||||
Electronics | Neck Pickup | VSP7n : Split Single Coil / Alnico V | VSP7n : Split Single Coil / Alnico V | |||||||
Middle Pickup | - | - | ||||||||
Bridge Pickup | VSC7b : Single Coil / Alnico V | VSC7b : Single Coil / Alnico V | ||||||||
Controls | Master Volume, Pickup Balancer, 3-BAND EQ(Bass, Middle, Treble), Active/Passive Switch. | Master Volume, Pickup Balancer, 3-BAND EQ(Bass, Middle, Treble), Active/Passive Switch. | ||||||||
Pickup Switch | - | - | ||||||||
Hardware | Bridge | Vintage Plus : Convertible stringing, Brass Saddle, Steel Plate | Vintage Plus : Convertible stringing, Brass Saddle, Steel Plate | |||||||
String spacing | 19 mm | 18 mm | ||||||||
Tailpiece | - | - | ||||||||
Tuning Machines | Lightweight Open Gear | Lightweight Open Gear | ||||||||
Pickguard | 3Ply Black | 3Ply Black | ||||||||
Others | String gauge | D'Addario EXL-170SL / 0.045-0.100 | D'Addario EXL-170-5SL / 0.045-0.130 (5 strings) | |||||||
Case | Gig bag | Gig bag | ||||||||
Special Features | - | - | ||||||||
