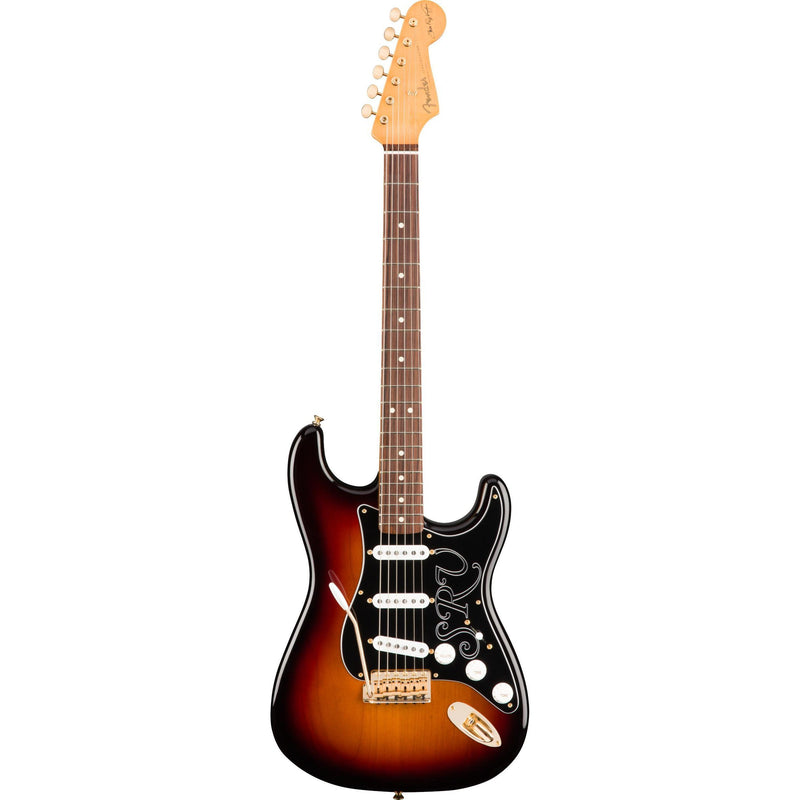

If there were a Mount Rushmore of the Stratocaster, Stevie Ray Vaughan would be one of the greats enshrined there. Fender's Stevie Ray Vaughan Stratocaster is a finely crafted like-new version of Vaughan's favorite guitar—the famous "Number One" Strat® with which he electrified listeners everywhere and seared scorching Texas blues into the top of the charts. For pure SRV tone and style that evokes one of the Stratocaster's most revered masters, this is the "one."
The largest of the fret sizes, jumbo frets are tall and wide, which lets you get a better grip on the strings, enabling more control over them and making bends and vibrato easier. A good choice for players with larger hands and thicker fingers.
As Vaughan himself preferred, his signature model features a thick oval neck profile (the shape of the neck in cross section) that imparts a distinctively comfortable fretting-hand feel, and more mass for improved tone and sustain.
Single-coil Texas Special pickups are over-wound for big Texas-blues tone with dynamically scorching output. With alnico 5 magnets, enamel-coated magnet wire and staggered pole pieces for balanced output across each string, they sing, scream and everything in between with tight bass, focused midrange and crystalline highs.

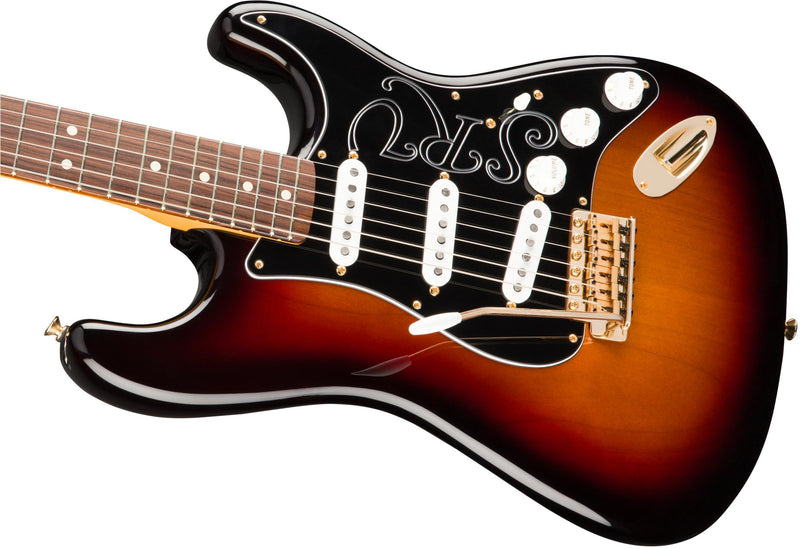

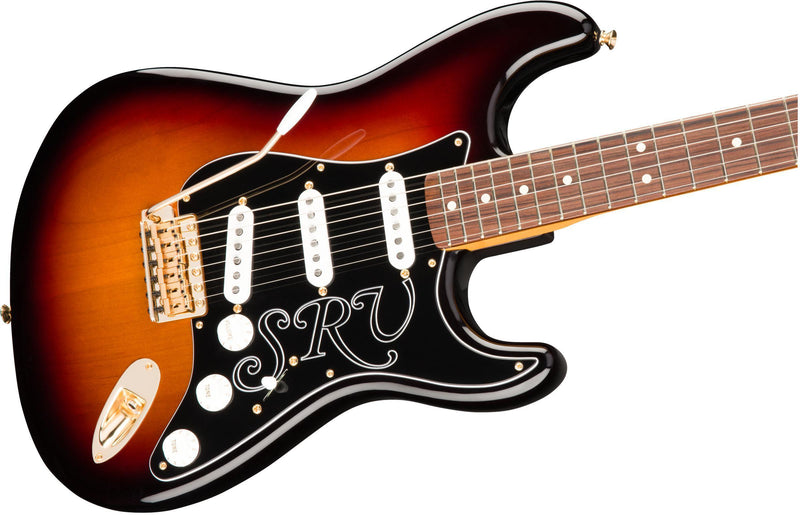

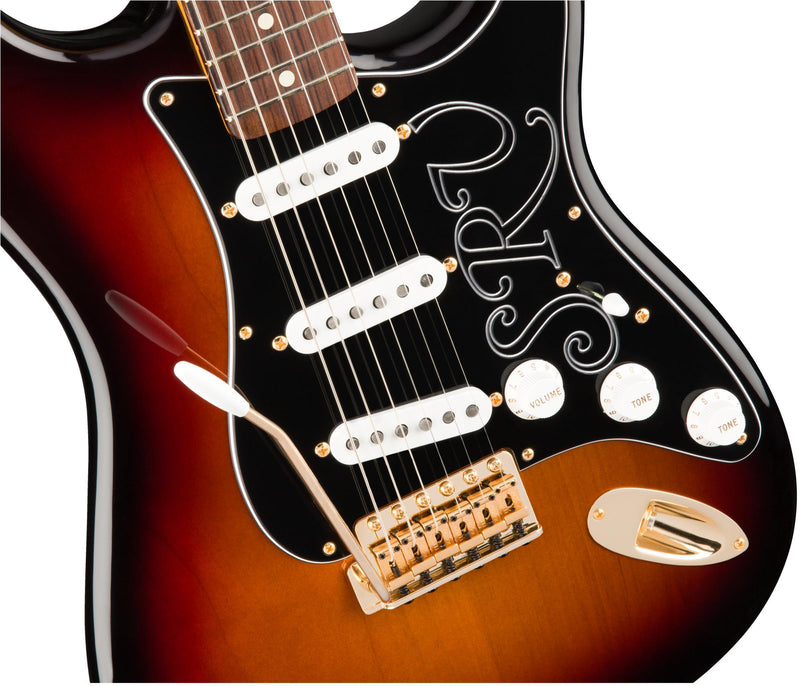

Surely the most distinctive visual element of this instrument is its black pickguard, engraved with the big, bold initials of the man himself.
A great wood for instrument fingerboards, pau ferro is a South American tone-wood with a feel and sonic characteristics similar to rosewood, but lighter in color and harder.
Vaughan is said to have preferred the left-handed (or upside-down) tremolo because its placement on a right-handed guitar was more like the arrangement used by Jimi Hendrix—with the trem arm above the strings rather than below them.
Body Material Alder
Body Finish Urethane
Body Shape Stratocaster®
Neck Material Maple
Neck Finish Gloss Urethane
Neck Shape Thick "Oval"
Scale Length 25.5” (648 mm)
Fingerboard Material Pau Ferro
Fingerboard Radius 12" (305 mm)
Number of Frets 21
Fret Size 6105
Nut Material Synthetic Bone
Nut Width 1.650” (42 mm)
Position Inlays Ivory Dots
Truss Rod Vintage Style Butt Adjust
Bridge Pickup Custom Shop Texas Special™ Single-Coil Strat®
Middle Pickup Custom Shop Texas Special™ Single-Coil Strat®
Neck Pickup Custom Shop Texas Special™ Single-Coil Strat®
Controls Master Volume, Tone 1. (Neck Pickup), Tone 2. (Middle Pickup)
Switching 5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup
Bridge 6-Saddle American Vintage Synchronized Tremolo
Hardware Finish Gold Plated

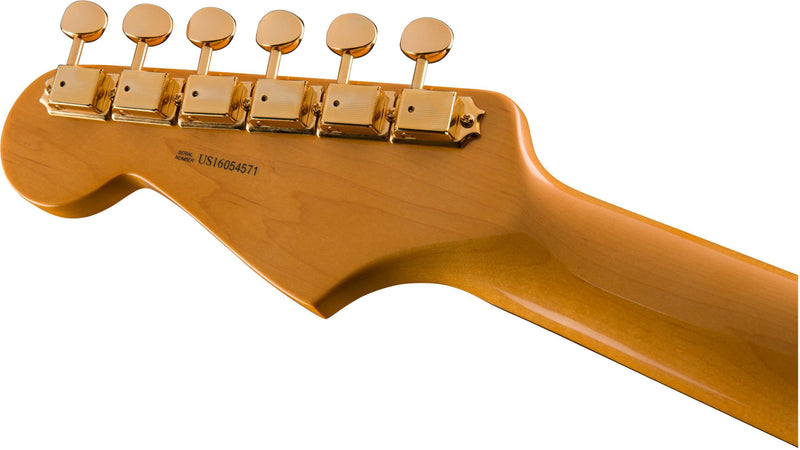

Tuning Machines 6-in-Line American Vintage
Pickguard 3-Ply Black with Engraved SRV
Control Knobs White Plastic
Switch Tip White
Neck Plate 4-Bolt Custom
Strings Fender® USA 250R Nickel Plated Steel (.010-.046 Gauges)
Legal Notice WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Other Features Deep, Thick Oval Shape Neck, Gold Plated Vintage Hardware, Engraved SRV Pickguard, Left Handed American Vintage Tremolo

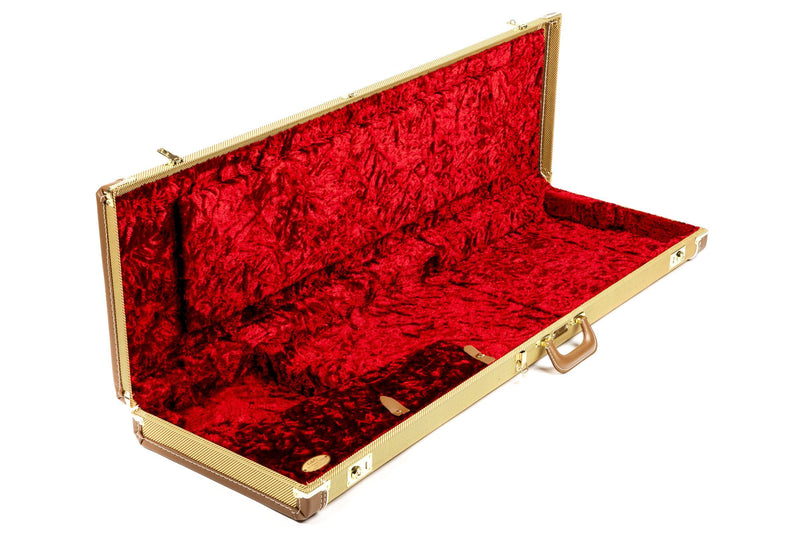

Case/Gig Bag Vintage Tweed Case
Included Accessories Vintage Tweed Hardshell Case, Strap, Cable
