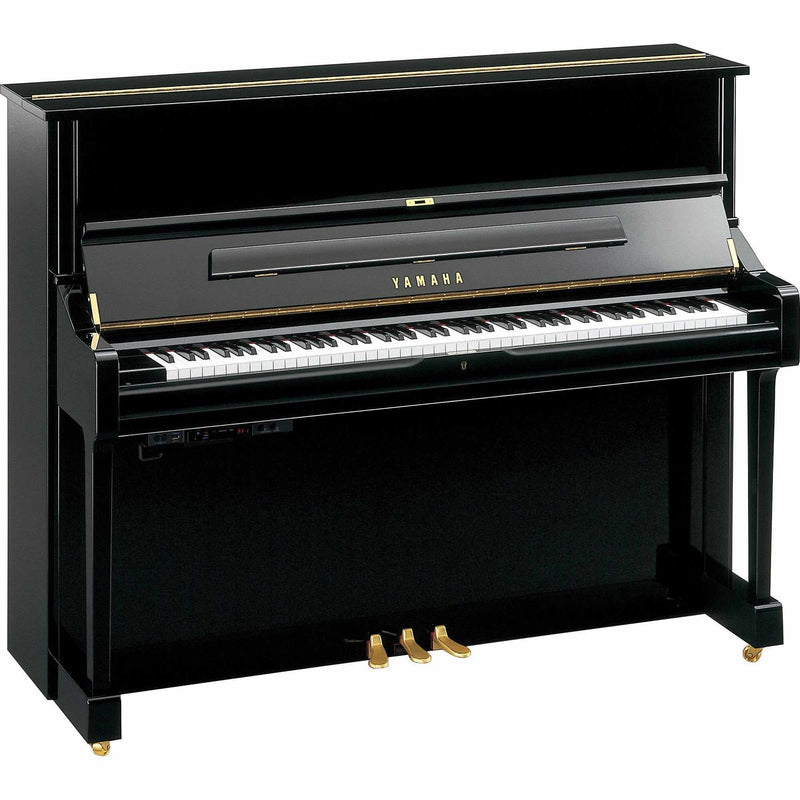

Yamaha U1 TA3 TransAcoustic Piano

SKU: U1TA3PE

$17,199 RRP $17,699

Same acoustic piano design as Yamaha U1
Includes Yamaha’s TA3 “TransAcoustic Piano” system
121cm Tall
Made in Japan
Includes tuning, regulation and voicing
Includes stool & delivery

More information View images

TransAcoustic™ technology

Newly developed TransAcoustic™ technology transmits digital sound directly to the piano soundboard, thus making the piano itself behave as a speaker. On a TransAcoustic™ piano, the sound that you hear is resonating directly from the soundboard. The tone generator sends an optimized audio signal to transducers that are connected by a coil to the soundboard. This sets the coils in motion, causing the soundboard to vibrate and generate sonic vibrations that travel through bridges attached to the soundboard, and are ultimately transmitted to the strings, making them resonate with sound.

Play piano at any volume

There are times when the full sound of an acoustic piano may not be appreciated by your family or neighbors. For these situations, simply activate the TransAcoustic™ mode and the hammers will no longer strike the strings. Non-contact sensors under each individual key detect your keystroke depth, velocity and timing and send this information to the tone generator. Just adjust the volume and hear the digital sound of your piano performance coming from the entire instrument. Naturally, there is no need for headphones or external amplification.

Two World-Renowned Piano Sounds

You can play TransAcoustic™ TA2 type with the voices of CFX, Yamaha’s finest concert grand piano, and Bösendorfer’s legendary Imperial. All 88 keys are sampled individually. As Yamaha’s flagship grand piano, the majestic CFX boasts a wide palette of tonal colors, from sparkling high notes to powerful bass tones. The legendary Bösendorfer, meanwhile, is renowned for its sonorous and rich Viennese sound.

A broad sonic palette

TransAcoustic™ TA2 type offers total 20 pre-installed sounds such as electric pianos, harpsichord, organs, strings, choir, and synth pad, allowing you to select the ideal voice to match your preferred musical genre.

Combine acoustic and digital sound

Thanks to their unique construction, TransAcoustic™ TA2 type allow you to layer the natural, resonant sound of the acoustic piano together with voices from the tone generator. Perhaps the most scintillating sounds are created by combining the acoustic and digital properties of the instrument—for example, gentle orchestral strings seemingly played from an acoustic piano—to achieve sonic textures with a natural quality not found on any other instrument.

Play-along to music

Enjoy playing along with any of the 50 preset songs that come with TransAcoustic™ TA2 type, accompanying your playing with songs you have recorded yourself, or even with commercially available songs played back through the sound board. You can play a duet with yourself, or you can just sit back and listen to the playback.

Featuring SILENT Piano™ SH2

Yamaha's SILENT Piano™ SH2 technology allows practice sessions to be conducted with headphones. Yamaha's SILENT Piano™ SH2 technology also features a superb binaural sample from the Yamaha CFX concert grand piano recorded using special techniques to perfectly capture the sound from the player's natural listening position. These two technologies combine to create the perfect environment to play without disturbing others.

Rich resonance and subtle accurate reproduction

CFX Binaural Sampling *Only for SILENT Piano™ mode

Yamaha’s advanced binaural sampling technology uses samples from the CFX, Yamaha’s acclaimed concert grand piano, recorded with specialized microphones that capture locational information and other nuances discerned by the human ear. The resulting sound is so natural, so enveloping, that you’ll soon forget you’re even wearing headphones at all.

VRM physical modeling-—the distinctive reverberation generated by the entire body of a concert grand piano *Only for SILENT Piano™ mode

In a grand piano, sound resonates throughout the body of the instrument, producing a rich reverberation that envelops the listener in sound. This phenomena is reproduced perfectly through enhanced Virtual Resonance Modeling (VRM). The original VRM calculates the various states of the strings for each of the 88 notes on the keyboard, from one instant to the next, and timing and depth of damper pedals pressed. The enhanced VRM now also calculates aliquot resonance in the upper octaves, and the full resonance of the soundboard, rim, and frame. This technology allows for vivid, bright, richly-varied expression that reflects the limitless number of factors inherent in piano performance.

Stereophonic Optimizer (Piano Voices other than CFX Grand) *Only for SILENT Piano™ mode

Stereophonic Optimizer is an effect which reproduces the natural sound distance, like with the sound of Binaural Sampling, even though you are listening to it on headphones. When one of the Piano Voices other than CFX Grand is selected, the Stereophonic Optimizer is enabled.

Smooth Release-From staccato to legato, superbly expressive sound that responds to the player’s touch

Featuring Yamaha's Smooth Release technology, TransAcoustic™ TA2 type offers the crisp tone heard when playing staccato as well as the lingering sound produced by releasing the keys more. This provides finely-nuanced response to the pianist’s playing.

Key-Off samples

The moment a pianist’s fingers are lifted from the keys of a grand piano, subtle changes occur in the instrument’s tone as the damper is lowered onto the strings to mute its sound. Key-Off samples features actual recordings of these changes, offering a faithful reproduction of the most subtle changes in the piano’s sound, allowing for a more realistic performance.

Unique Yamaha technology retains the all-important touch of the piano

Key sensors

Under each of the 88 keys is a Yamaha-unique continuous-detection grey-scale shutter key sensor. These sensors detect the movement of the keys continually, allowing natural musical expression even when the piano is in TransAcoustic™ mode or SILENT Piano™ mode. Since they do not come into contact with the keys, these sensors do not affect the feel of the keyboard in any way.

Hammer sensors

Grand piano with TransAcoustic™ TA2 type are fitted with hammer sensors that allow even slow keystrokes or rapid trills. To ensure that they do not affect the feel of the keyboard in any way, Yamaha uses non-contact sensors.

Quick escape system

Grand piano with TransAcoustic™ TA2 type features a quick escape system that allows the sound muting mechanism to be fitted to a grand piano without sacrificing any of the playability or musical expression demanded of such instruments in an acoustic performance. This system allows optimal separation to be obtained between the hammers and strings by adjusting the distance between the hammers and strings, ensuring that the feel of the keyboard stays in the best possible condition whether playing acoustically or with the sound muted.

General functions

Connect wirelessly for Bluetooth® audio

You can stream audio files through TransAcoustic™ TA2 type by using a Bluetooth-enabled smart device. You can enjoy playing along with any songs on your smart device. (May not be available depending on your area)

Smart Pianist APP

The smart device app “Smart Pianist” (available as a free download) enables you to use the functions such as selecting Voices, controlling the metronome intuitively with the visualized interface, or display the score on your smart device.

The UD-WL01 USB Wireless LAN Adaptor (sold separately) is required to use Smart Pianist over a wireless connection.

More Information

Sophosticated & simple design of the control panel

The control unit has been given a sophisticated design that unobtrusively blends with the piano itself. Moreover, the simple controllers allow you to operate the instrument easily.

For Polished White finished piano, the white colored unit will be installed.

Connection terminals

The USB TO HOST terminal allows you to connect to a computer or portable device and record high-quality audio without the need for an additional interface, while AUX OUT allows sound to be output to a variety of external devices (e.g. stereo components, IC recorders, speakers with built-in amplifiers, stereo systems), and AUX IN allows listening to sound from external devices (sound source modules and music players). MIDI OUTPUT transmits performance information to external devices such as synthesizers. MIDI IN allows the instrument to receive and playback performance information from sequencers using the tone generator of the TransAcoustic™ TA2.

Two recording systems (Built-in recorder and USB audio recorder)

The performance can be recorded in two different ways. It can be recorded either directly to the built-in recorder of a piano, or to a USB audio recorder, in which case the data stored in USB flash memory in WAV format can be played on a PC as well. Using a built-in recorder is more convenient if the players wish to listen to the recorded piece right away. It allows them to listen to the entire performance of a music piece or to go back and listen to a particular section of the piece. Since performances are saved in WAV format with a USB audio recorder, they can be recorded onto CDs or played on portable music players.

Open structured headphones- produce clear, high-quality sound

The headphones that come with TransAcoustic™ TA2 type are designed in a way that minimizes the strain on users after long hours of playing. This newly employed headphones contribute to the improvement of sound quality as well as to the reduction of fatigue during performance.

Metronome

TransAcoustic™ TA2 type has a built-in metronome that can be used in both TransAcoustic™ mode and SILENT Piano™ mode so that players can listen to precise rhythm while they play.

Dimensions	Width	153 cm (60 1/4")
	Height	121 cm (47 3/4")
	Depth	62 cm (24 1/2")
Weight	Weight	242 kg (534 lb)
Keyboard	Key Surfaces - White	Acrylic resin
Keyboard	Key Surfaces - Black	Phenolic resin
Hammer	Type	U Series Special
Pedal	Type	Damper/Silencing pedal/Soft
Caster	Type	Double Caster
Lid	Prop Safety Stop	-
Key Cover	Lid/Fallboard Locks	Yes
Key Cover	Soft-Close Fallboard	Yes
Key Sensors		Non-contact continuous detection optical sensor
Hammer Sensors		-
Damper Pedal		Continuous detection sensor
Sostenuto Pedal		-
Soft/Shift Pedal		On/Off detection sensor
Mechanism		Hammer shank stopper operated by center pedal
Action		-
Mechanism		TransAcoustic™ technology
Tone Generation	Piano Sound	Yamaha CFX, Bösendorfer Imperial
	Binaural Sampling	Yes (CFX Grand Voice only)
	VRM	Yes
	Key-off Samples	Yes
	Smooth Release	Yes
Polyphony (max.)		256
Preset	Number of Voices	20
Voices for Song Playback		480 XG Voices + 12 Drum/SFX Kits
Types	Reverb	Yes
	Brilliance	Yes
	Stereophonic Optimizer	Yes (Piano Voices other than CFX Grand)
Preset	Number of Preset Songs	20 Voice Demo Songs, 50 Classics
Recording	Number of Songs	10
Recording	Data Capacity	approx. 550 KB/Song
Format	Playback	SMF (Format 0, Format 1)
Format	Recording	SMF (Format 0)
Recording Time (max.)		80 minutes/Song
Format	Playback	WAV (44.1 kHz, 16 bit, stereo)
Format	Recording	WAV (44.1 kHz, 16 bit, stereo)
Overall Controls	Metronome	Yes
	Tempo Range	5 – 500
	Transpose	-12 – 0 – +12
	Tuning	414.8 – 440.0 – 466.8 Hz (approx. 0.2 Hz increments)
Bluetooth		Yes (Audio) *May not have this functionality depending on your area. Check with your Yamaha dealer.
Storage	Internal Memory	approx. 1.3 MB
Storage	External Drives	USB flash drive
Connectivity	Headphones	Stereo mini jack (x2)
	MIDI	IN/OUT
	AUX IN	Stereo mini jack
	AUX OUT	[L/L+R][R] (Standard phone jack)
	USB TO DEVICE	Yes
	USB TO HOST	Yes
Power Consumption		40 W
Auto Power Off		Yes
Included Accessories		Headphones, headphone hanger, attachment screws for headphone hanger, “50 Classical Music Masterpieces” music book, Owner’s Manual.
Separately Sold Accessories		USB wireless LAN adaptor (UD-WL01), wireless MIDI adaptor (UD-BT01/MD-BT01) *May not be available depending on your area.

"We want our clients to have peace of mind with a finished and performance-ready piano of superb quality. We do not cut corners, and we will never settle for anything less than getting the best out of every piano we sell." - Geoff Logan

Why Buy Your Piano From Logans?

Anyone can tell you they provide great service, but can they prove it? Logans Pianos have been in the piano business for almost a century, and in that time we've provided pianos for some of the most important performers and institutions in the music industry. Our long history as Sydney's most trusted name in pianos bears testament to the fact the we are the best in the business, and we have the evidence to back that claim up.

Now with four generations of experience, we have the expertise to ensure that a piano from Logans will deliver the best possible performance and the greatest enjoyment for many decades to come.

All pianos purchased from Logans come with a minimum of $1250 worth of extras, including:

Minimum three courses of tuning, regulation & voicing
10 Year Warranty, and free after sale care
Delivery to ground level
Matching Yamaha piano bench
Limited Time offer: 50th anniversary pack, including fitted piano cover, metronome, piano polish & commemorative clock with Logans and Yamaha logos.

What is Piano Regulation?

Production schedules in factories only allow for a certain amount of time to be spent on each piano. Additionally, pianos are shipped in vacuum sealed environments, and moving parts shift slightly as they adjust to their new environment. Adjustments made by a piano technician to an instrument's keys and action to compensate for these shifts is referred to as "regulation".

All new pianos before leaving their factory are tuned and regulated. Piano components including wood, felt, and doeskin have a tendency to "bed down" and change in thickness for some time, thus altering the regulation and performance of the piano. All manufacturers fundamentally insist that their new pianos be regulated again before being sold.

Today, piano regulation is a dying art, and Logans are one of very few piano shops in Australia that still perform a full course of regulation as part of every sale. A large percentage of pianos sold in Australia receive no more than a single tuning at this most important stage in their lives - a fact even Yamaha Australia have tactely acknowleged in labelling Logans Pianos the only Yamaha Piano Authorised Sales and Service Centre in NSW.

Why is Regulation Important?

Piano regulation is vital to ensuring a long and healthy life for any piano, whether it's a $6000 upright or a $500 000 Concert Grand. The minute adjustments made by a piano technician prevent vital moving parts for rubbing together and wearing prematurely, and ensures a clear, even volume by ensuring the action is balanced across all 88 keys.

Additionally, it removes the "stiffness" that experienced piano players often complain of when playing a brand new pianos, and brings out the full performance potential inherent in its design. Traditionally, regulation was considered an essential part of the purchase of a piano, and piano dealers were judged on the quality of their regulation.

Piano Voicing

Piano voicing involves balancing the volume, tone, and overall sound of the piano by adjusting the hardness of the hammer felts by pricking them with needles using a tool called a "picker". While this sounds like a simple enough task, it requires years of experience to get a feel for how to achieve the "right" voicing for an individual piano. It can be a time consuming task on a higher quality piano, which will generally start with denser felt so that it needs to be replaced less frequently. In many ways, voicing is as much art as science, and as such relies heavily on the taste and experience of the technician.

There is a widespread myth that Japanese pianos have an inherently "bright" or "harsh" sound, compared with their more expensive European and North American counterparts. This is simply not the case. More often than not, this comes down to the piano's voicing being given little, or no attention by the seller. In point of fact, most Yamaha pianos still use the same felt and strings as a Steinway. If a mellow sound is what you want in your piano, we are more than happy to oblige.

Piano Tuning

As with regulation, the tuning of a piano is heavily impacted by changes in atmospheric conditions. As a result of this, it is crucial that a new piano is not merely tuned prior to sale, but left to sit, and retuned in a repeated cycle until the technician can be certain that the tuning will remain stable.

Typically, a piano requires three tunings prior to sale, but sometimes more are necessary, depending on a variety of factors including construction, weather and even the specific cuts of timber used in the instrument. Ultimately, we see it as our responsibility to continue tuning a piano until we can be sure it's going to stick.

Unfortunately, many dealers try to bypass this process by offering to tune the piano in your home, offering the explanation that "moving the piano will put it out of tune". This is absolutely false. However, it is true that piano's tuning will drift a little in the first six months as it acclimatises to your home.

To remedy this, all pianos sold at Logans include at least one free tuning to be used at any point in the first six months, as part of Yamaha's Premium Piano Care Program. Grand Pianos pianos may include up to 10 years worth of free tunings, free of charge.

Assuming your piano has been prepared correctly and nothing unexpected happens (flood, fire, pestilence etc.), it should only require scheduled tuning every 6-12 months, and a course of regulation and voicing every few years.

The Logans Difference

A full course of tuning, regulation, and voicing on a new piano runs anywhere from $900 to $1100, depending on the specific instrument. Logans include this service as part of the purchase price on every new piano we sell, free of charge.

All pianos also include free delivery, a matching piano bench, manufacturers warranty, and at least one free tuning after delivery We can also arrange continued maintenance afterwards. The knowledge and experience gained over the past century, ensures a Logans Piano will deliver the best possible performance and the greatest enjoyment for many decades to come.

While many piano sellers advertise tuning and regulation as part of their pre-sale service, most consistently fail to invest the time and resources required to bring them up to standard. This is a fact we are regularly reminded of whenever one of our technicians arrives for a scheduled tuning on a piano purchased from a competitor, and finds that it in need of voicing and regulation, just six months after purchase.
