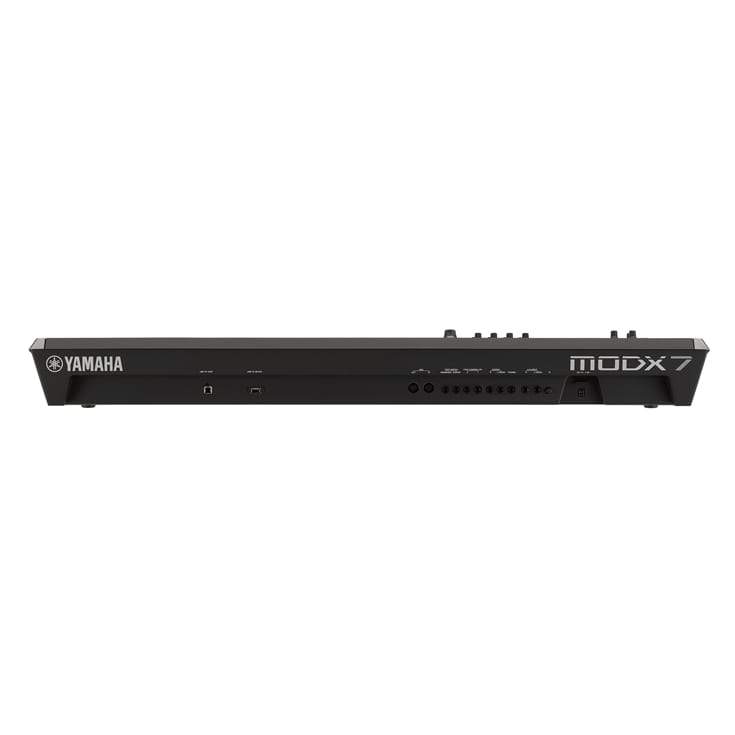

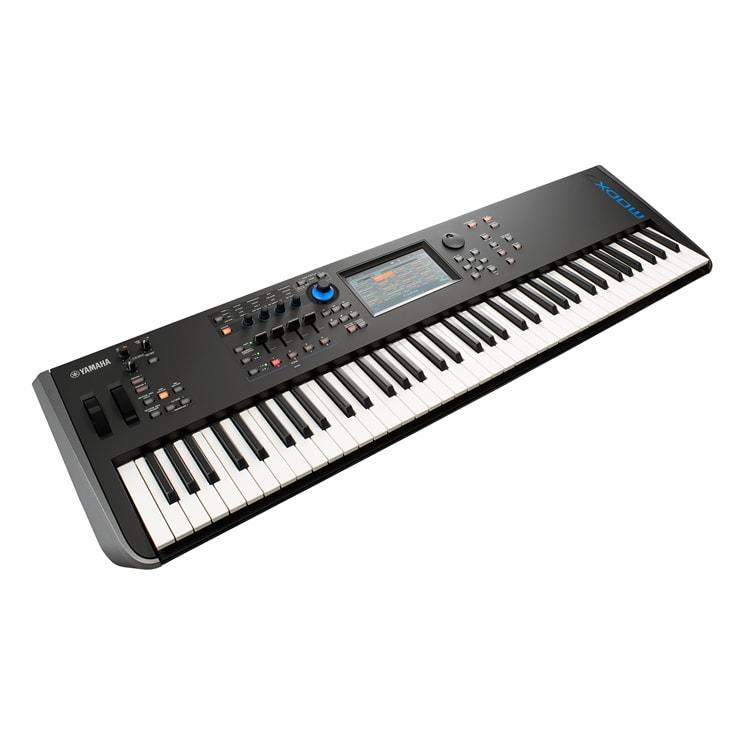

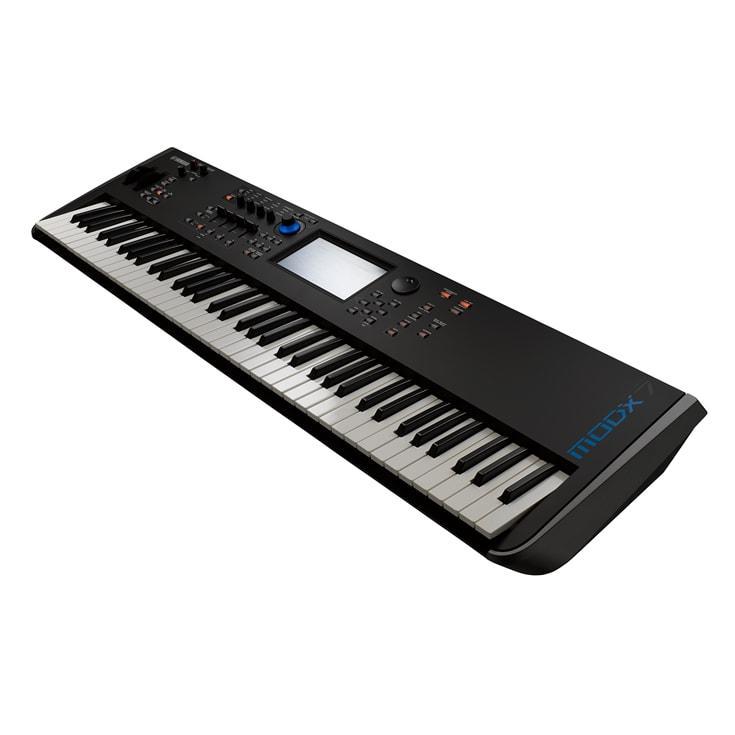

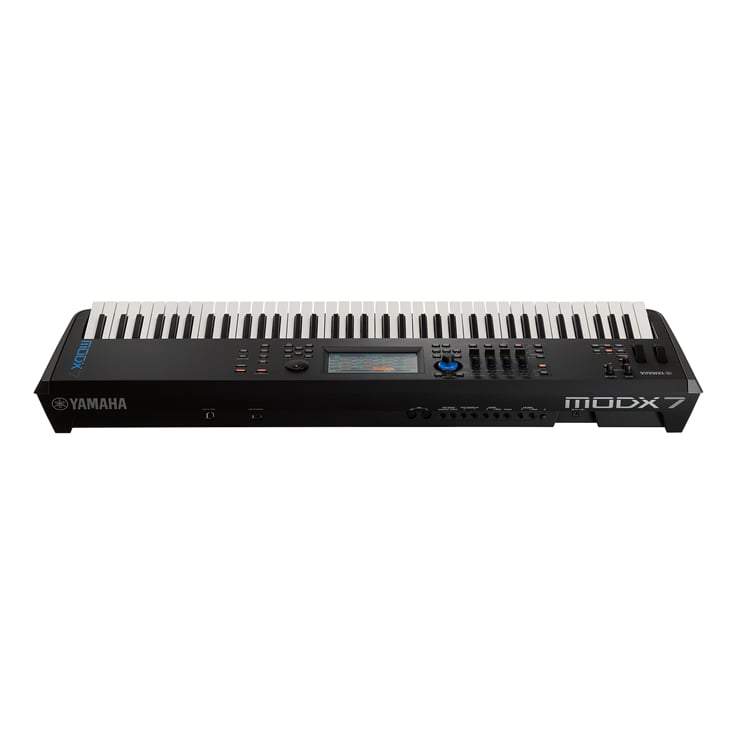

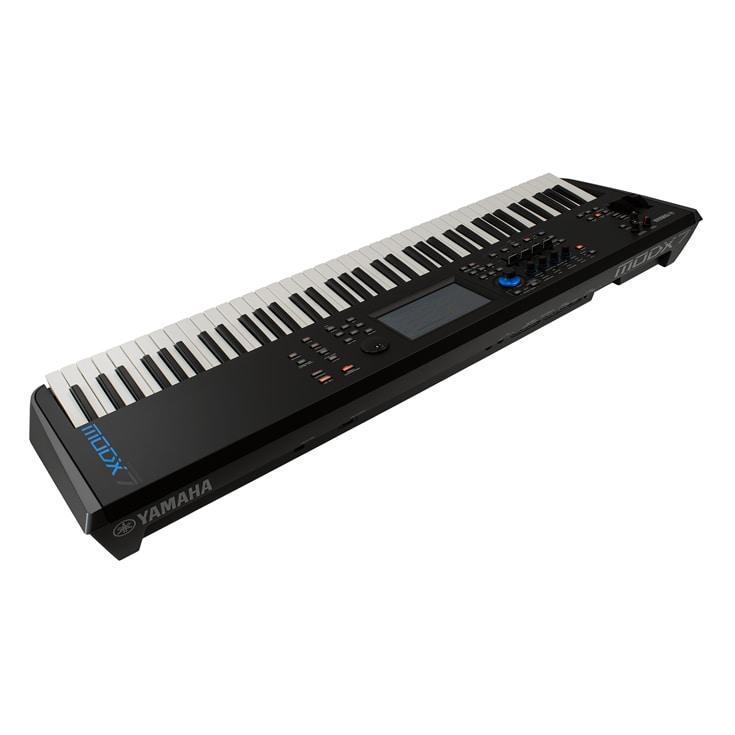

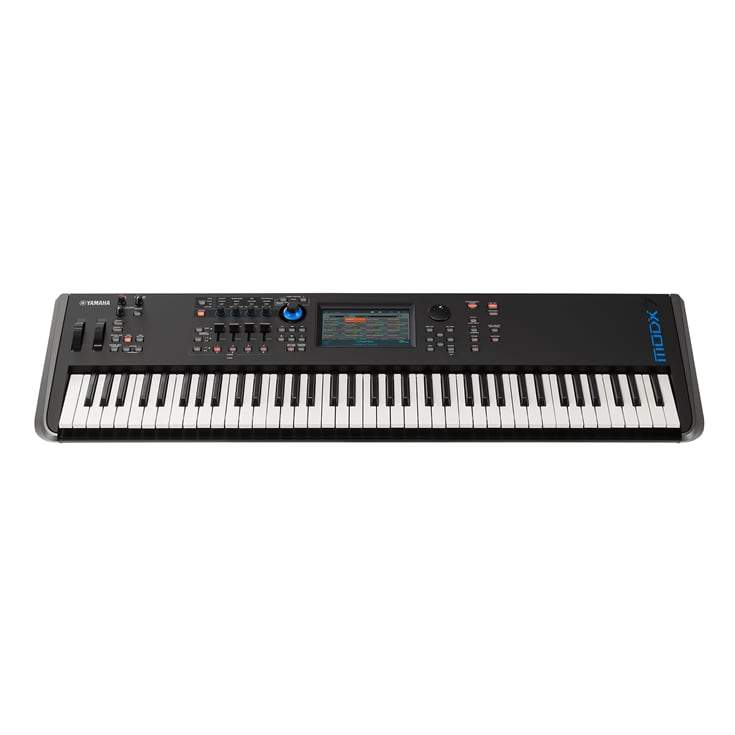

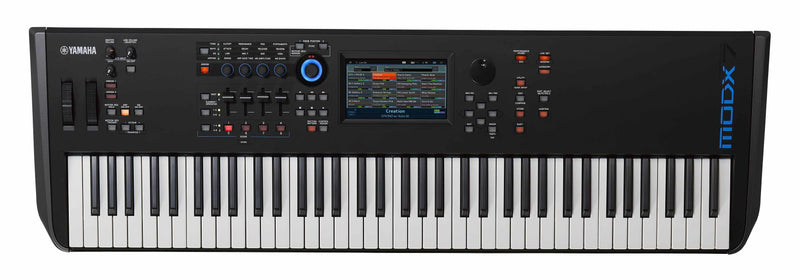

Yamaha MODX7 76-Key Synthesizer

SKU: MODX7

$1,464
  • Good 76 Key Digital Synth
  • Semi Weighted Synth Action
  • Fully Controllable FM-X Engine
  • same technology powering the flagship MONTAGE synthesizer: an AWM2 (Advanced Wave Memory 2)
  • Seamless Sound Switching for Live Performances
  • Motion Contol for unique control
  • Includes Cubase AI Software

SOUND

Sound is the most important aspect of any instrument. The power of the MODX synthesis engine allows unlimited potential to create your own unique sound demanded by any artist.

The MODX sound engine is based on the same technology powering the flagship MONTAGE: AWM2 (Advanced Wave Memory 2) sample and synthesis engine and a pure FM-X (Frequency Modulation) synthesizer modernized for amazing sound playback and complex sound design.

AWM2

Only found in Yamaha music synthesizers, the AWM2 engine offers much more than just sample playback. Each of the 16 AWM2 parts feature eight fully-programmable synthesizers with a filter (18 different types!,) amplitude, pitch and filter envelope generators, nine LFOs, 3-band EQ and a dedicated dual insert effect with Virtual Circuitry Modeling.

FM-X

FM-X is an amazingly sophisticated pure synthesizer engine capable of producing classic ‘80s or cutting-edge, EDM sound with incredible dynamic range, power and fidelity. MODX features an 8-operator FM architecture and 64-note polyphony, allowing for a massive array of sound design options.

192-NOTE TOTAL POLYPHONY

MODX features 128-note stereo AWM2 polyphony and 64-notes of FM-X polyphony. Due to the unique architecture of MODX and MONTAGE, this polyphony is always available without latency or compromising other features.

SSS (SEAMLESS SOUND SWITCHING)

Seamless Sound Switching (SSS) lets you change performances seamlessly without any cut-off in envelope or effects. This is perfect for live performances where you end one song and start another without stopping.

* This function is only available for Performances that have a maximum of 4 parts.

INTEGRATEDFLASH

MODX includes 1 GB of non-volatile user flash memory with high speed reading/writing for your own custom samples or synth libraries from yamahamusicsoft.com.

EFFECTS

From high definition reverbs to incredibly detailed Virtual Circuit Modeling (VCM) effects, MODX is loaded with DSP innovation, power and, most importantly, sound quality. Use effects like Beat Repeat, Vinyl Break or Bit Crusher to get EDM sound. The Spiralizer effect creates the auditory illusion of a tone continually rising or falling in pitch without getting higher or lower.

You can even add a compressor with sidechain for a modern “ducking” effect. Or go retro with vintage effects like Analog Delay, VCM Phaser or a variety of Amp Simulators. Piano players will appreciate piano-focused effects like Damper Resonance for a super-realistic piano experience and the HD reverbs that let you put yourself in any performance space.

A/D INPUT

Coupled with two A/D inputs, MODX is a perfect centerpiece for any professional recording studio or live computer rig.

SIDECHAIN

Automatically control the dynamic behavior of one part from another. Sidechain is very popular in modern dance music where a pad or other sustain part is “keyed” to the kick drum. When the kick drum plays, it ducks down the sustained part creating a “pumping” rhythmic effect.

MULTI-CHANNEL USB AUDIO INTERFACE

As expected for modern computer-based music production, MODX features a professional 4-in/10-out, multi-channel USB audio interface. A single-cable connection replaces the need for an external audio interface. iOS compatible.

CONTROL

Every artist wants to sound unique. Take control and stand out from the crowd. Bring the sophistication of music production automation to realtime live performance with Motion Control.

SUPER KNOB

The Super Knob allows simultaneous control of up to 128 parameters in a single Performance. This means you can control nearly anything from mix functions like volume, pan and effect sends to detailed synth parameters like filters, LFOs and Operators.

That’ s 128 parameters…SIMULTANEOUSLY!

The Super Knob can even be assigned to a second FC7 foot controller making it easy to manipulate the sound when playing with both hands.

MOTION SEQUENCES

Motion Sequences are tempo-synchronized, completely customizable control sequences that can be assigned to virtually any synthesizer parameter and provide incredible new ways of creating sound.

Motion Sequences also have dedicated controls on the front panel making it easy to manipulate and change in real-time, providing incredible interactivity and expression.

ENVELOPE FOLLOWER

The Envelope Follower converts audio into a control source for control of virtually any synthesizer parameter. For example, a drum loop could drive effects parameters for a cool rhythm or a vocal recording could control multiple parameters for a “talking” synthesizer. The audio can even be a “live” source through the A/D input.

AUDIO BEAT SYNC

ABS (Audio Beat Sync) detects the beat of and external device like an electronic drum kit, drum machine or audio player plugged into the A/D input and synchronizes the MODX Arpeggiator, Motion Sequencer or Songs to the tempo of the external input. The MODX synthesizer “listens” to live music and plays in time.

CUBASE AI BUNDLE

MODX is bundled with Cubase AI, Steinberg's professional music production application that offers integrated recording and editing.

Cubase AI

MOBILITY

Designed for musicians on the go, MODX is compact, lightweight and mobile.

LIGHTWEIGHT

Designed for musicians on the go, MODX is compact, lightweight and mobile.

The MODX6 weighs in at 14.6 lbs, the MODX7 at 16.3 lbs and the 88-note weighted Graded Hammer Action MODX8 comes in at a svelte 30.4 lbs.

SOFT CASE

The premium soft case for MODX is protective, lightweight and stylish.

The MODX soft case is manufactured with top-notch nylon, high quality zippers, pockets for pedals and cables and a luxurious inside that will keep your MODX protected and looking great for years to come. soft case for MODX is protective, lightweight and stylish.

MORE INFORMATION

Dimensions

Width

1,144mm (45-1/16")

Height

134mm (5-1/4")

Depth

331mm (13-1/16")

Weight

Weight

7.4 kg (16 lbs 5 oz)

Keyboard

Number of Keys

76

Type

Semi-weighted Keyboard

Initial Touch

Yes

Aftertouch

No

Tone Generator

Motion Control Synthesis Engine AMW2: 8 Elements FM-X: 8 Operators, 88 Algorithms

Maximum Polyphony

AWM2: 128 (max.; stereo/mono waveforms) FM-X: 64 (max.)

Multi Timbral Capacity

16 Parts (internal), Audio Input Parts (A/D*, USB*) *stereo Part

Wave

Preset: 5.67 GB (when converted to 16 bit linear format), User: 1.00 GB

Performance

Approx. 2,000

Filter

18 types

Effects

Reverb x 12 types, Variation x 76 types, Insertion (A, B) x 76 types*, Master Effect x 15 types *A/D part insertion x 71 types (Preset settings for parameters of each effect type are provided as templates) Master EQ (5 bands), 1st part EQ (3 bands), 2nd part EQ (2 bands)

Controllers

Master Volume, AD Input Gain knob, USB Volume, Pitch Bend wheel, Modulation wheel, Control Sliders x 4, Knobs x 4, Super Knob, Data dial

Display

7" TFT Color Wide VGA LCD touch screen

Connectors

[USB TO DEVICE], [USB TO HOST], MIDI [IN]/[OUT], FOOT CONTROLLER [1]/[2], FOOT SWITCH [ASSIGNABLE]/[SUSTAIN], OUTPUT [L/MONO]/[R] (6.3 mm, standard phone jacks), [PHONES] (6.3 mm, standard stereo phone jack), A/D INPUT [L/MONO]/[R] (6.3 mm, standard phone jacks)

Power Consumption

16 W (when using PA-150B AC adaptor)

Accessories

AC adaptor (PA-150B or an equivalent recommended by Yamaha*), Owner’s Manual (this book), Cubase AI Download Information *May not be included depending on your area. Check with your Yamaha dealer.

Live Sets

Preset: 256 and more, User: 2,048

Tracks

16 Sequence tracks, Tempo track, Scene track

Recording type

Real time replace, Real time overdub, Real time punch in/out

Note Capacity

Approx. 130,000 notes

Note Resolution

480 ppq (parts per quarter note)

Tempo (BPM)

5 – 300

Songs

128 songs

Arpeggio

Parts: 8 Parts simultaneous (max.), Preset: 10,239 types User: 256 types

Sequence formats

MODX original format, SMF formats 0, 1
